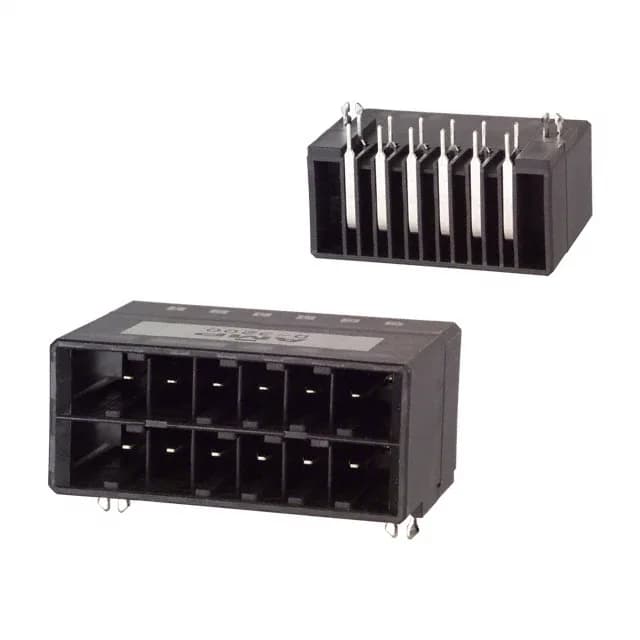

The 1-316081-5: This is a 12-position, dual-row header from TE's Dynamic D-3200 series, on a 5.08mm pitch with 7.62mm row spacing. The 4-wall shrouding protects the mating tabs during blind mating and prevents misalignment with the receptacle.
Board Locks and Right-Angle Mount — Mechanical Retention
In a right-angle through-hole mount, the board locks take the strain off the solder joints — without them, repeated cable flex can crack the fillets over time. The contact length on the post side is 0.150" (3.81mm), which fits standard 1.6mm PCBs with enough tail protrusion for wave or hand solder.
Tin-Plated Contacts — Moderate-Cycle Industrial Duty
The post finish is also tin, consistent with the solder tail finish for a uniform interface.
