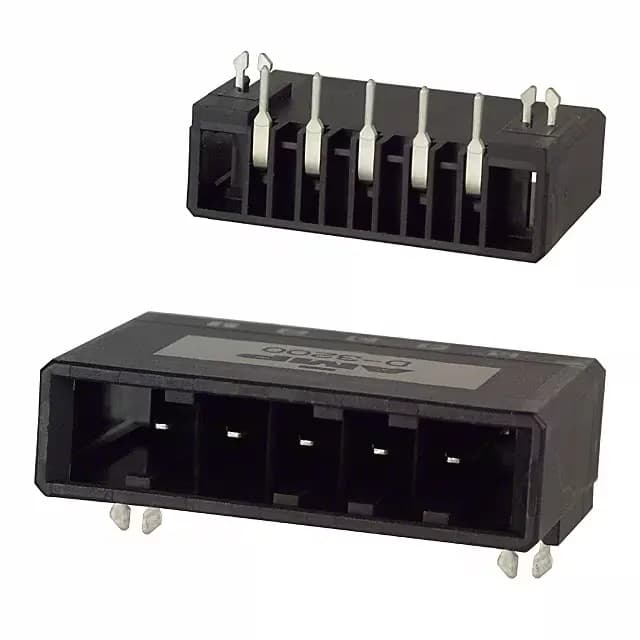

TE Connectivity AMP Connectors, Dynamic D-3200 series, header, 5 positions, 5.08 mm pitch, through hole right angle, tin mating finish, board lock, UL94 V-0, ROHS3 compliant, active production.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 1-316130-5: The 600 V voltage rating and UL94 V-0 thermoplastic housing suit this header for general-purpose and industrial applications where flame-rated materials are required inside an enclosure. The glass-filled polyester insulation resists creep and maintains dimensional stability under reflow.
The mating pitch is 0.200" (5.08 mm), single row.
Yes, the 1-316130-5 is ROHS3 compliant per the manufacturer's listing.
