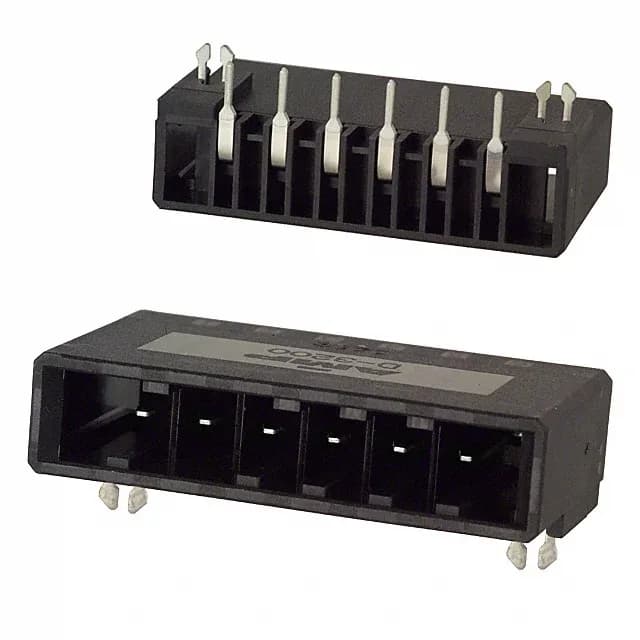

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-316131-5, Board to Board or Cable, 6 Positions, 0.200" (5.08mm) Pitch, Through Hole, Right Angle, Tin Mating and Post, Board Lock, UL94 V-0, -55°C ~ 105°C, 600V
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 0.200" (5.08mm) pitch gives you room to route higher current without the density constraints of a 2.50mm signal header. Rated at 600V and housed in a UL94 V-0 thermoplastic polyester, it's built for the panel or cabinet where flame rating and voltage isolation are non-negotiable.
Yes, it is listed as RoHS Compliant.
