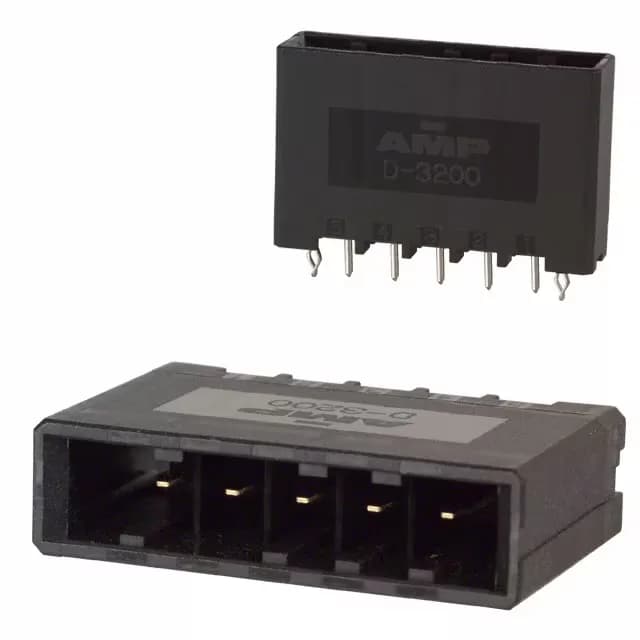

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 1-316132-3, 5 positions, single row, 0.200" (5.08 mm) pitch, 600 V, gold-plated mating contacts, through-hole, solder termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-316132-3: The shrouded 4-wall housing carries gold-plated mating contacts rated 600 V, with a detent lock for positive retention and a board lock for through-hole solder termination.
The 1-316132-3 supports mated stacking heights from 31.00 mm to 32.50 mm at the 5.08 mm pitch, accommodating board spacing within that window.
RoHS and REACH compliance documentation is available from the manufacturer.
