6-position, 5.08 mm pitch header for power and signal

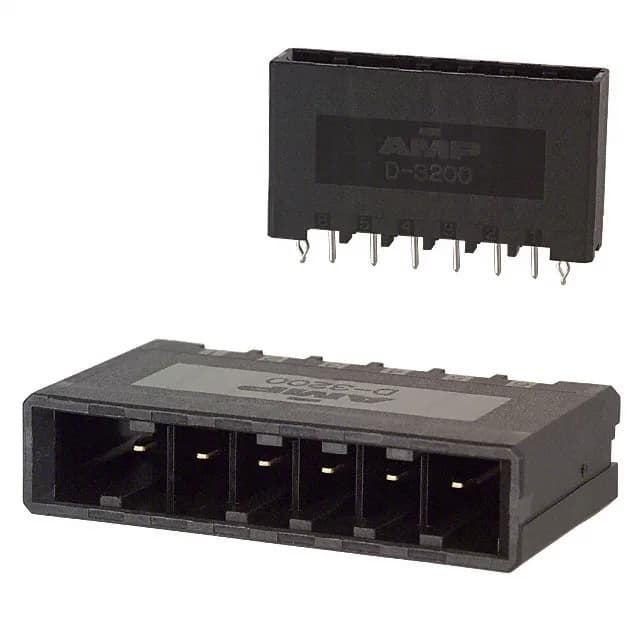

The 1-316133-2: This is a single-row, 6-position header from TE's Dynamic D-3200 series. The gold layer gives this header a solid mating cycle life for repeated connect-disconnect in industrial gear.
Mates with Dynamic D-3200 receptacles
This header mates with Dynamic D-3200 receptacle housings and crimp-socket contacts. The shrouded 4-wall design guides the plug straight on — no bent pins from a crooked mate. Mated stack height range is 31.00 mm to 32.50 mm, which sets the board-to-board or wire-to-board spacing. Contact type is a rectangular tab — mates with the corresponding socket terminal in the D-3200 family.
