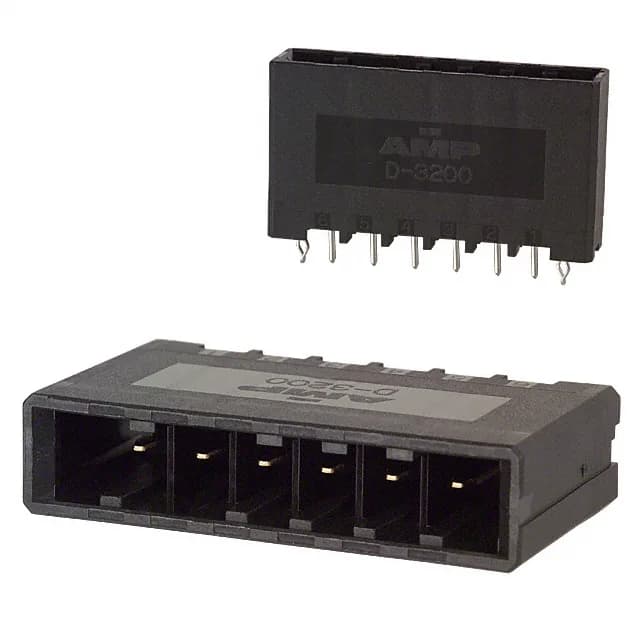

TE Connectivity AMP Connectors Dynamic D-3200 series, 1-316133-3, board-to-board/cable header, 6 circuits, 5.08mm pitch, shrouded 4-wall, through-hole solder, board lock, gold-plated tab contacts, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-316133-3 is a 6-position, single-row header from the Dynamic D-3200 series, pitched at 5.08mm — wider than typical signal headers, which suits it for power or higher-voltage routing in industrial control cabinets and general-purpose equipment. It is fully shrouded with four walls and a detent lock, preventing mis-mating and holding the cable-side connector securely under vibration.
This header mates with Dynamic D-3200 series receptacles (cable-side connectors) that accept the same 5.08mm pitch and 6-position layout. The detent lock on the header engages with the receptacle latch.
Yes, the board lock feature is listed on the spec sheet. It provides mechanical retention during soldering and resists pull-off forces from the mated cable connector.
