What this 6-position header carries and where it fits

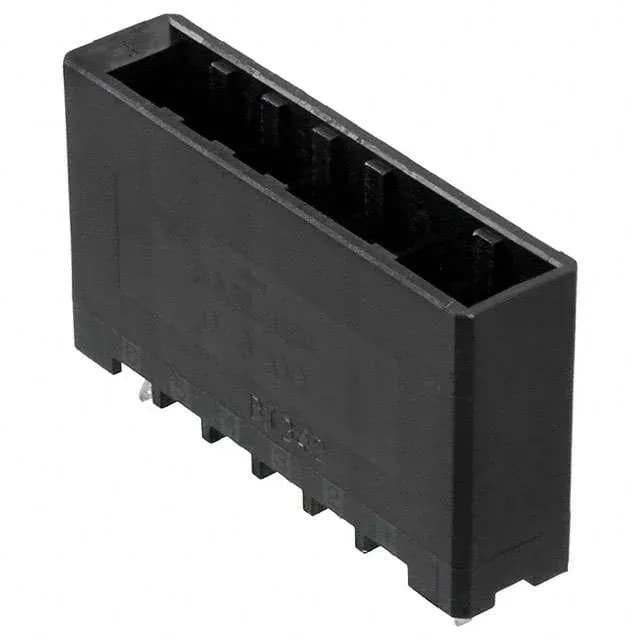

The 1-316133-5: The shrouded 4-wall housing and detent lock keep the mating plug aligned and latched — no secondary lock needed for moderate-vibration industrial cabinets.
Board lock and stack height for through-hole mounting
Mated stack height spans 31.00mm to 32.50mm, giving board-to-board spacing flexibility for mezzanine or backplane layouts. The insulation height of 0.850" (21.59mm) means the header stands tall above the board — check clearance to adjacent components or enclosure lids before layout.
Mating half and sourcing reality
This header mates with Dynamic D-3200 series receptacle housings that accept tab contacts — the mating half is typically a 6-position receptacle with the same 5.08mm pitch.
The closest functional second-source in the same family is 1-1871673-2, a 4-position, 2-row header with a 2.50mm pitch and right-angle orientation. That part trades positions and density for a smaller footprint and lower voltage rating (250VAC/DC vs 600V). If your design needs more than 4 circuits or must stay single-row, 1-316133-5 is the correct pick.
