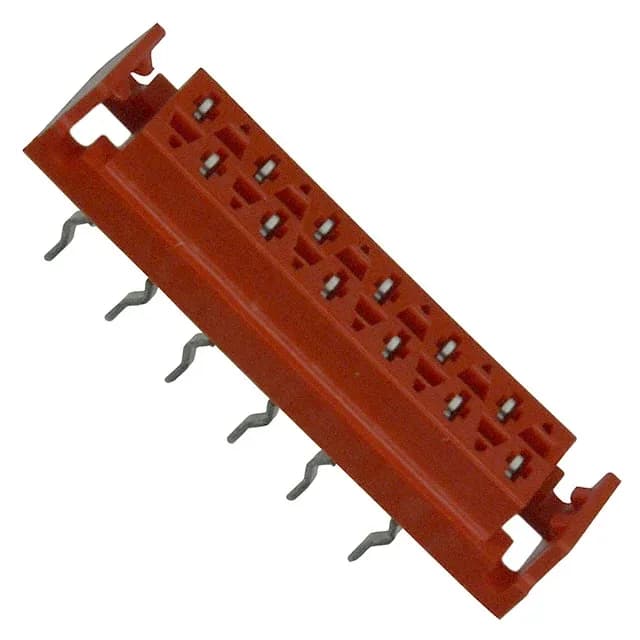

TE Connectivity AMP Connectors Micro-MaTch series, 1-338068-2, receptacle, 12 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-plated forked contacts, friction lock, through-hole termination, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-338068-2 is a 12-circuit, dual-row receptacle from TE's Micro-MaTch series, pitched at 0.100" (2.54 mm) — a standard grid that matches common prototyping and production footprints.
ROHS3 compliant — no lead, mercury, cadmium, or phthalates above the threshold limits.
Yes, the fastening type is listed as friction lock, which provides a positive retention force against the mating header without requiring a separate latch or screw.
The mating pitch is 0.100" (2.54 mm), with the same row spacing, so it fits standard 0.100" grid headers.
