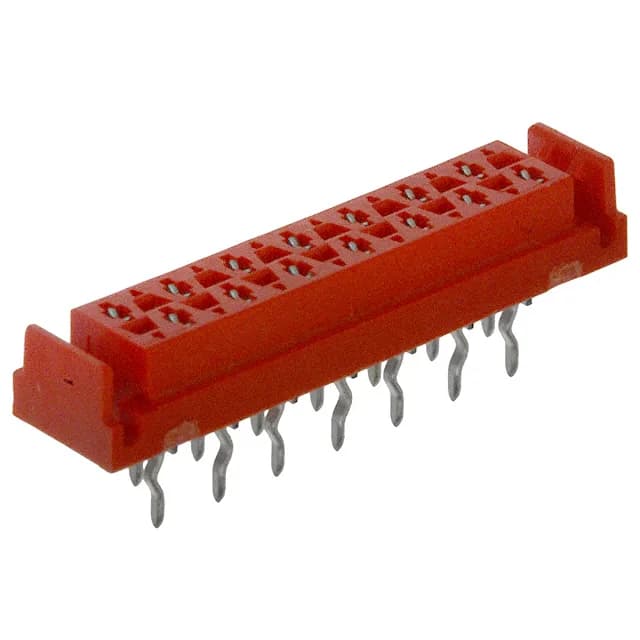

TE Connectivity AMP Connectors Micro-MaTch series, 1-338068-4, 14-position dual-row receptacle, 0.100" (2.54mm) pitch, tin-plated forked contacts, friction lock, through-hole termination, UL94 V-0 rated housing.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-338068-4 is a 14-position, dual-row receptacle from the Micro-MaTch series, pitched at 0.100" (2.54mm) on both rows.
The mating contact finish is tin, and the post finish is also tin — a cost-effective choice for moderate-cycle applications.
Yes, it is ROHS3 compliant.
The 1-338068-4 is a 14-position, dual-row receptacle with all positions loaded. The pinout follows the standard Micro-MaTch dual-row layout — confirm the mating header pin assignment against your circuit diagram.
