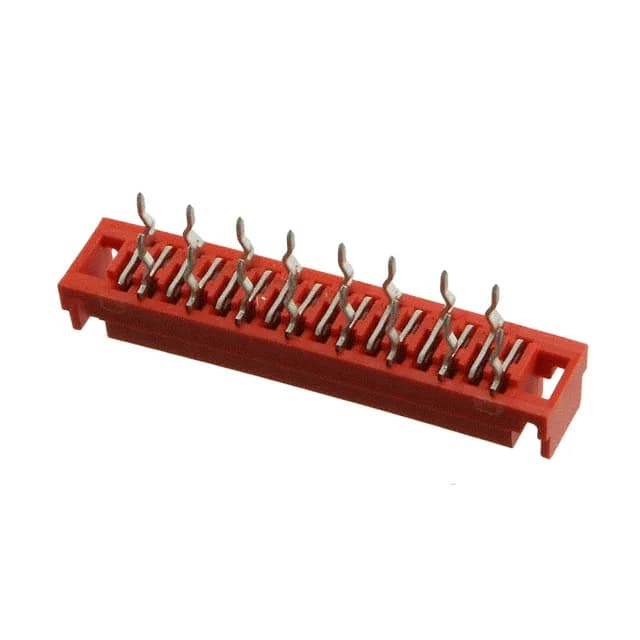

TE Connectivity AMP Connectors Micro-MaTch receptacle, 16 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated phosphor bronze forked contacts, friction lock, through-hole termination, rated 100 VDC, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-338068-6: It uses tin-plated forked contacts and a friction lock for retention.
Termination is through-hole solder with kinked pins, which helps retain the connector during wave soldering. The contact length after the board is 0.122" (3.10 mm).
The mating pitch is 0.100" (2.54 mm), dual-row, with a row spacing also at 0.100" (2.54 mm).
Yes, it is ROHS3 Compliant.
