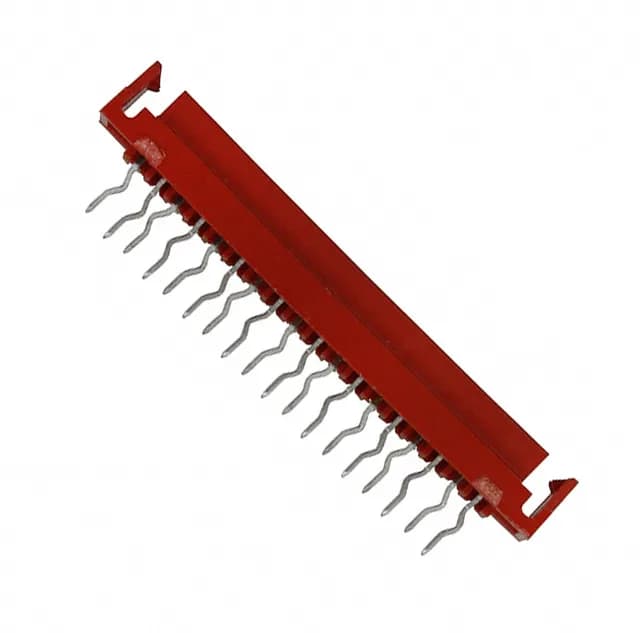

TE Connectivity AMP Connectors Micro-MaTch series, 1-338068-8, 18-position dual-row receptacle, 0.100" (2.54mm) pitch, tin-plated forked contacts, friction lock, through-hole termination, rated 100VDC, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Rated at 100VDC, the tin-plated forked contacts suit general-purpose and automotive signal applications where repeated mating cycles are moderate.
Mating pitch is 0.100" (2.54mm) with a row spacing of 0.100" (2.54mm), giving a standard 18-pin dual-row footprint. The insulation is red PBT/polyester glass-filled, rated UL94 V-0, and all 18 positions are loaded.
Yes, it is ROHS3 compliant per the manufacturer.
