TE Connectivity AMP Connectors 1-338069-2 — Female Socket Headers

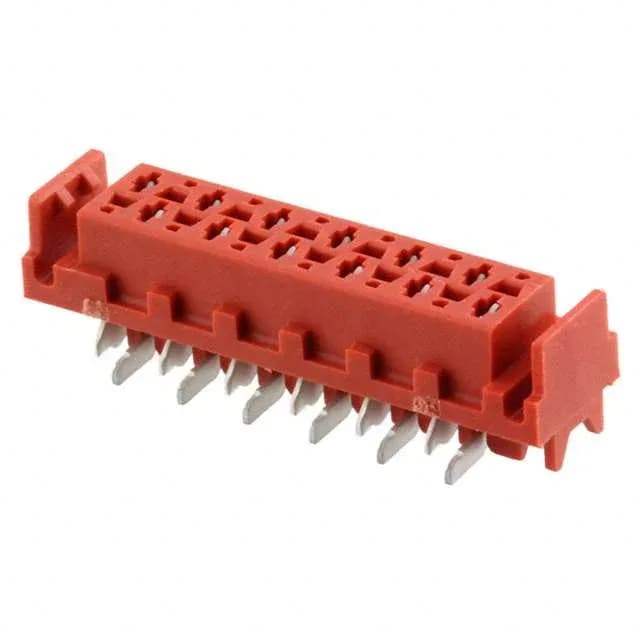

1-338069-2 TE Connectivity Micro-MaTch 12-Pin Receptacle

MPN1-338069-2
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 1-338069-2, 12 positions, 2 rows, 0.100" (2.54 mm) pitch, tin-plated forked contacts, SMD termination, friction lock, -40°C to 105°C, UL94 V-0.

$2.7000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-338069-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-338069-2 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeFriction Lock
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-338069-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

12-Position Dual-Row SMD Receptacle

The 1-338069-2 is a 12-position, dual-row receptacle from the TE Micro-MaTch series, designed for board-to-board or cable applications. The friction lock provides positive retention against vibration — a practical advantage in automotive and general-purpose environments where the mated pair must stay engaged under moderate shock.

Tin-Plated Forked Contacts for Solder Assembly

The forked contact design offers a reliable wiping action during mating. The SMD termination suits automated pick-and-place assembly. The glass-filled PA46 housing withstands reflow profiles typical for tin-plated contacts.

Pricing and lead time are confirmed at quote time against the BOM quantity.

Frequently asked questions

Is 1-338069-2 RoHS compliant?

Yes, the 1-338069-2 is ROHS3 compliant.
