TE Connectivity AMP Connectors 1-338069-4 — Female Socket Headers

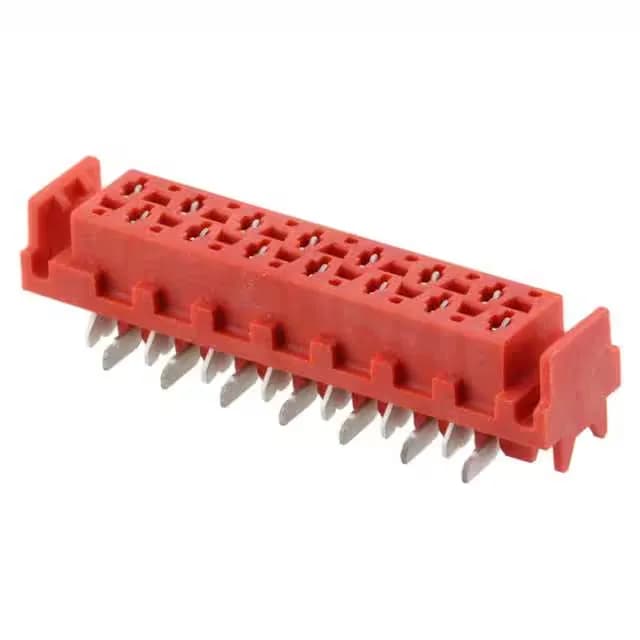

1-338069-4 TE Connectivity Micro-MaTch Receptacle

MPN1-338069-4
Active

TE Connectivity AMP Connectors Micro-MaTch receptacle, 14 positions, 2 rows, 0.100" (2.54mm) pitch, tin-plated forked contacts, surface mount, friction lock, red PA46 housing, UL94 V-0.

$1.9971Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-338069-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-338069-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeFriction Lock
Voltage rating100VDC
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.209\" (5.30mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0

All specifications

1-338069-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
TerminationSolder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin

Product details

2.54mm Pitch, 14-Position Dual-Row Receptacle

The 1-338069-4: The 14-position, 2-row layout (7 per row) matches a common BOM line for board-to-board or cable-to-board interconnects in automotive and general-purpose equipment. Forked contact geometry provides a wiping action on mate, cleaning the tin-plated interface — rated for moderate mating cycles where gold plating is not justified.

Friction Lock and SMT Termination

Surface-mount termination with tin-plated posts suits reflow assembly; the red PA46 housing withstands the soldering profile and carries a UL94 V-0 flame rating.

ROHS3 compliant — no exemption declarations needed for EU-market builds.

Peer Comparison: 12-Position vs 14-Position

The closest functional sibling is 1-2823056-2 — a 12-position, 2-row receptacle with the same 2.54mm pitch, tin-plated contacts, and friction lock, but in a black housing. The 14-position version here adds two circuits for applications needing extra I/O in the same footprint width.

Frequently asked questions

Where can I buy 1-338069-4 and how do I get a price?

No stock-holding claim is made — each order is sourced fresh against the BOM line.

Is 1-338069-4 compatible with standard 2.54mm pin headers?

Yes. The receptacle's forked contacts wipe the header pins on insertion, and the friction lock holds the pair together.

What is the closest functional replacement or equivalent for 1-338069-4?

The nearest alternative is 1-2823056-2 — a 12-position version of the same Micro-MaTch receptacle with identical pitch, tin plating, and friction lock, but in a black housing. For a gold-plated option at lower position counts, consider the 1376775 series (3 or 5 positions).
