Board-to-board or cable receptacle, 16 positions
The 1-338069-6: It carries tin-plated forked contacts rated 100 VDC, mounts via surface-mount solder termination, and includes a friction lock for retention.

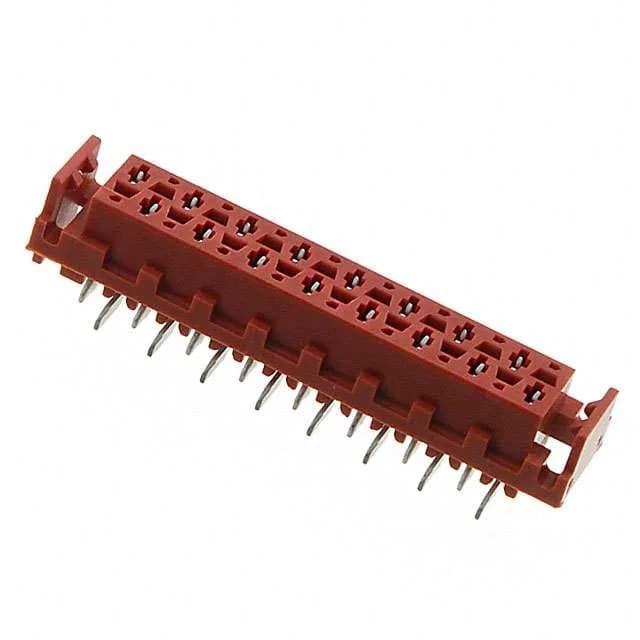

1-338069-6 TE Micro-MaTch Receptacle, 16 Pos, 2.54mm
MPN1-338069-6
Active
TE Connectivity AMP Connectors Micro-MaTch receptacle, order code 1-338069-6, 16 positions, dual row, 2.54 mm pitch, 100 VDC, tin-plated forked contacts, surface mount, solder termination.
$3.7800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the mating contact finish on 1-338069-6?
The mating contact finish is Tin.
