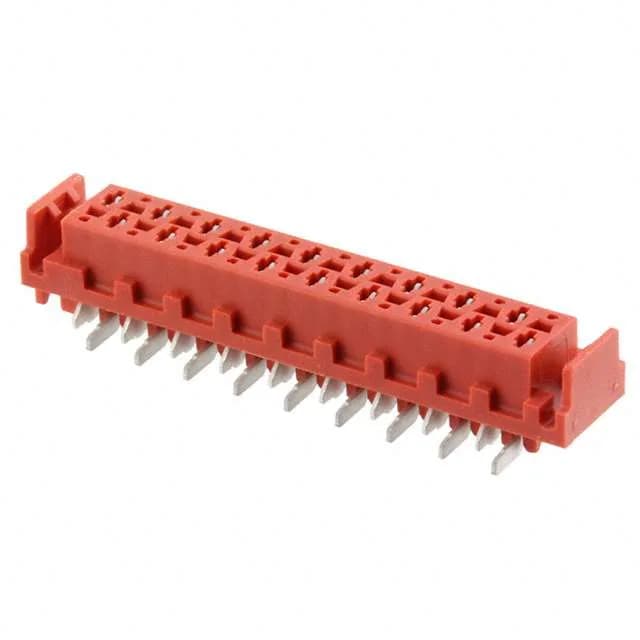

TE Connectivity AMP Micro-MaTch, 1-338069-8, 18-position dual-row SMD receptacle, 0.100" (2.54 mm) pitch, tin-plated forked contacts, friction lock, -40°C ~ 105°C, UL94 V-0, RoHS, active production.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 1-338069-8: It uses forked tin-plated contacts rated for board-to-board or cable applications, with a friction lock that keeps the mating pair engaged under vibration.
The 100 VDC voltage rating and tin-on-tin contact system suit low-voltage signal and power distribution where repeated mating cycles are moderate.
The 1-338069-8 offers 18 positions vs 12, and uses a red insulator instead of black.
Yes, the fastening type is friction lock, which provides positive retention against vibration-induced disconnect.
Yes, the listed applications include automotive and general purpose. Its -40°C to 105°C temperature range and UL94 V-0 flame rating align with automotive interior requirements.
