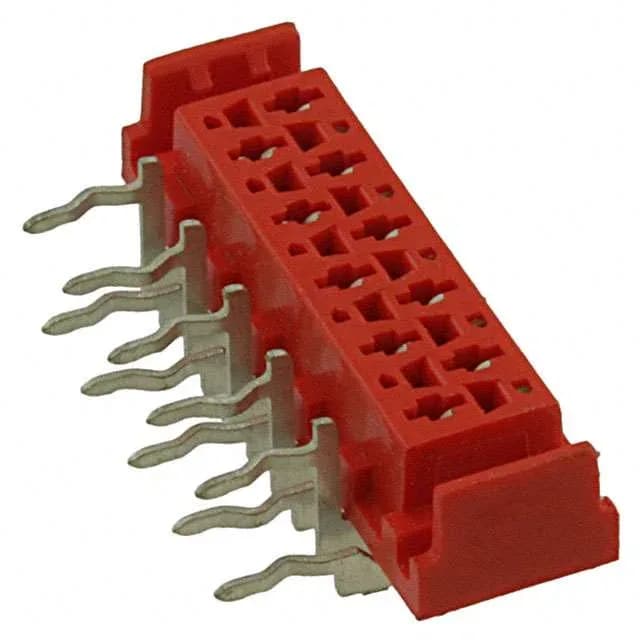

TE Connectivity AMP Connectors Micro-MaTch receptacle, 1-338070-0, 10 positions, 0.100" (2.54 mm) pitch, dual-row, tin-plated contacts, right-angle through-hole, friction lock, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
The 1-338070-0: It terminates via kinked pin, solder, and mounts through-hole, right-angle — the right-angle orientation keeps the connector parallel to the board, saving z-height in tight enclosures. The friction lock provides retention against moderate vibration without a secondary latch, simplifying assembly in automotive and general-purpose applications.
The 1-338070-0 is a dual-row receptacle with 10 positions, all loaded. Confirm the mating header's keying orientation before layout.
