What this 12-position receptacle fits

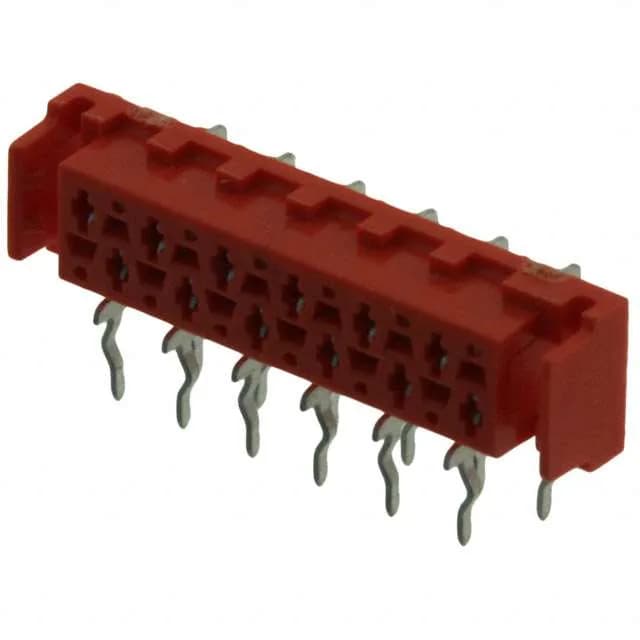

The 1-338070-2: The friction lock holds the pair together under moderate vibration — enough for automotive and general-purpose enclosures, though not a full positive latch for high-shock environments. Right-angle through-hole termination routes the cable parallel to the PCB, saving vertical clearance — a typical fit for board-edge connections in automotive control modules or industrial I/O cards.
Pitch, row spacing, and contact finish
Mating pitch is 0.100" (2.54mm) with the same row-to-row spacing — a standard dual-row grid that matches most 0.100" pin headers. All 12 positions are loaded; tin-on-tin contact finish (mating and post) is rated for moderate mating cycles, typical for production harnesses where gold is not required. The insulation is red PBT/polyester, glass-filled, rated UL94 V-0.
