16-position, 0.100-inch pitch, right-angle receptacle
Tin-plated forked contacts with friction lock
The forked contact style and tin-on-tin plating (mating and post) are a standard signal-grade finish.

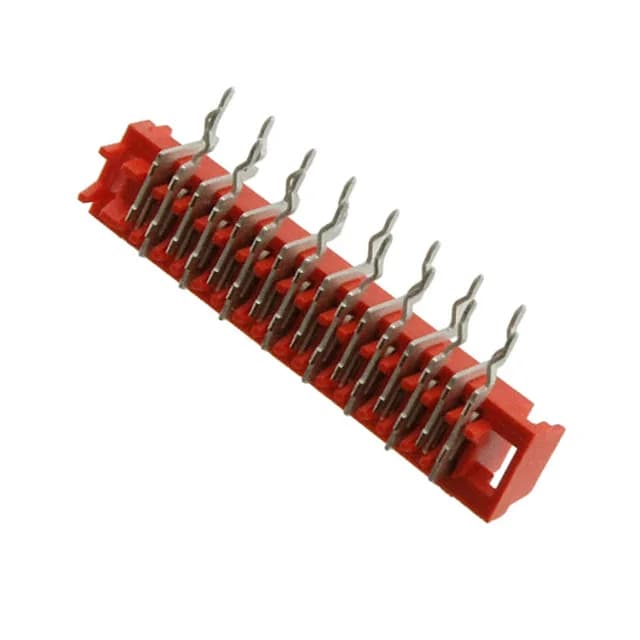

1-338070-6 TE Connectivity Micro-MaTch 16-Pin Receptacle
MPN1-338070-6
Active
TE Connectivity AMP Micro-MaTch receptacle, 1-338070-6, 16 positions, 2 rows, 0.100" (2.54mm) pitch, tin-plated forked contacts, right-angle through-hole termination, friction lock, UL94 V-0, -40°C to 105°C, tape and reel.
$3.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.228\" (5.80mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
Where can I buy 1-338070-6?
Submit a request with your target quantity and delivery window.
Is 1-338070-6 RoHS compliant?
Yes, it is ROHS3 compliant.
