TE Connectivity AMP Connectors 1-338728-4 — Pin Headers

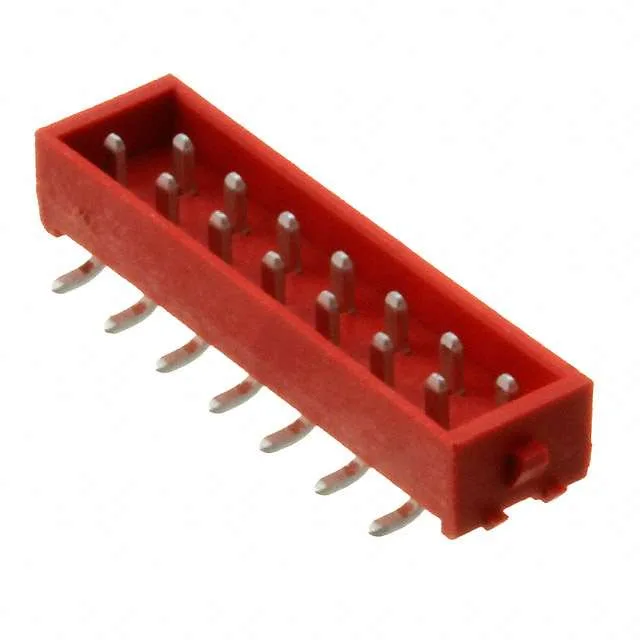

1-338728-4 TE Connectivity Micro-MaTch Header 14POS 2.54mm

MPN1-338728-4
Active

TE Connectivity AMP Micro-MaTch header, 1-338728-4, 14 positions, 2.54mm pitch, SMT, shrouded 4-wall, latch lock, 1.5A, 230V, UL94 V-0, -40°C to 105°C.

$3.0500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-338728-4 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorRed
Insulation height0.181\" (4.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled

All specifications

1-338728-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions14
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

Board-fit and mating half for this 14-position header

The 4-wall shrouding and latch lock protect the pins during mating and resist vibration-induced separation. Rated 1.5A per contact at 230V, with tin-on-tin contact finish (3.00µm on the mating side). The 1.5A limit suits signal-level or low-power interconnects, not bus-level current. The red insulator colour is a visual key for the Micro-MaTch family.

The 2.54mm pitch and dual-row layout mate with Micro-MaTch crimp receptacles or IDC sockets.

Frequently asked questions

What is the pin pitch of the 1-338728-4 header?

The mating pitch is 2.54mm (0.100").

Is the 1-338728-4 header surface mount or through-hole?

Surface mount (SMT).

What is the fastening type on the 1-338728-4 connector?

Latch lock — it provides positive retention against vibration.
