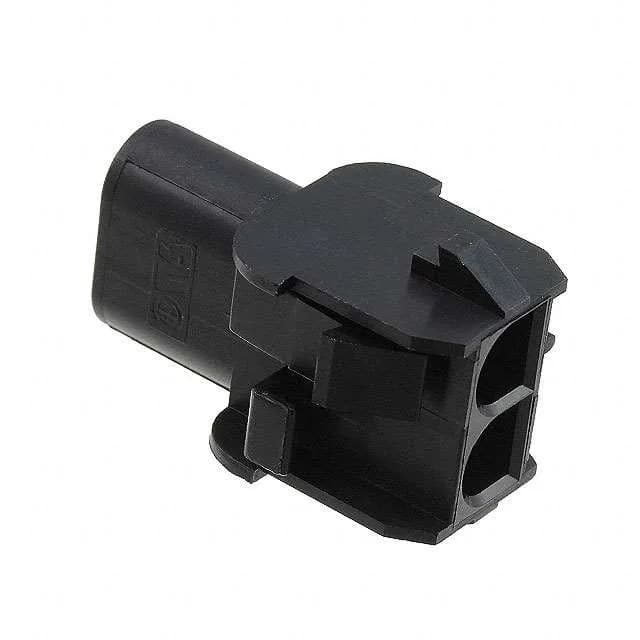

The TE Connectivity 1-350778-9 is a 2-position receptacle housing from the Universal MATE-N-LOK series, designed for panel-mount, snap-in installation. It accepts either male or female crimp contacts (sold separately) and secures the mating plug with a locking ramp for vibration-resistant connections in wire-to-wire or wire-to-panel harnesses.
Key Fit and Termination Details
Contacts are not included with this housing — you must order the appropriate crimp terminals separately. The housing accepts both male and female contacts, terminated via crimp, giving you flexibility to build either a pin or socket side of the connection. The locking ramp provides an audible and tactile latch when mated with the corresponding plug housing, holding the pair together under vibration. Panel thickness for snap-in mounting is not specified in the listing; verify the panel cutout and thickness against the product drawing before committing the BOM.
Sourcing and Compliance
The Universal MATE-N-LOK series is proprietary to TE Connectivity.
