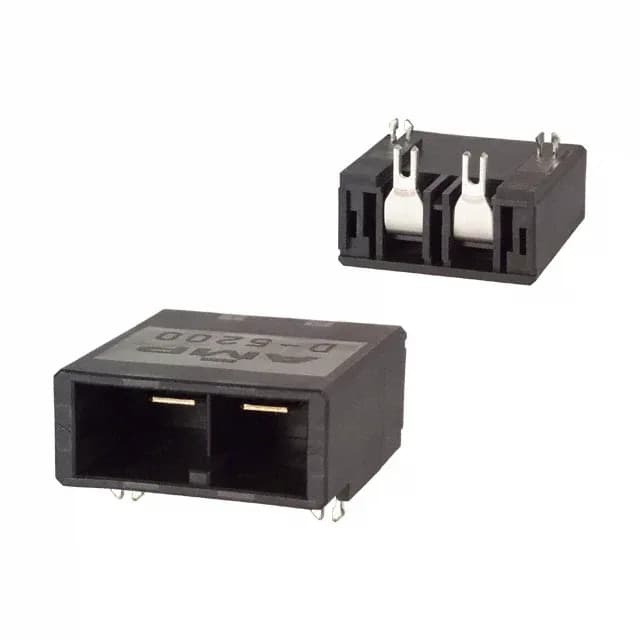

TE Connectivity Dynamic D-5200 header, 1-353079-3, 2 positions, single row, 0.400" (10.16 mm) pitch, 30 A, 630 V, through-hole right-angle, gold 30 µ" mating contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-5200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 630V |
| Current rating | 30A |
| IP rating | IP20 |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.547\" (13.90mm) |
| Parameter | Value |
|---|---|
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.400\" (10.16mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It uses a 0.400" (10.16 mm) pitch — wide enough to handle the 630 V rating with ample creepage between circuits. Rated 30 A per contact, this is a power-grade interconnect, not a signal line; each tab contact carries bus-level current for a main DC rail or high-current distribution point inside industrial equipment.
It is RoHS Compliant.
Current availability and pricing are confirmed at quote time — contact the storefront with your BOM quantity for a same-day quote.
The 1-353079-3 is a header that mates with the matching Dynamic D-5200 receptacle housing and crimp terminals. The series uses a tab contact style; the receptacle side accepts the corresponding Dynamic D-5200 female terminals.
Yes, the 1-353079-3 is RoHS Compliant per TE Connectivity.
