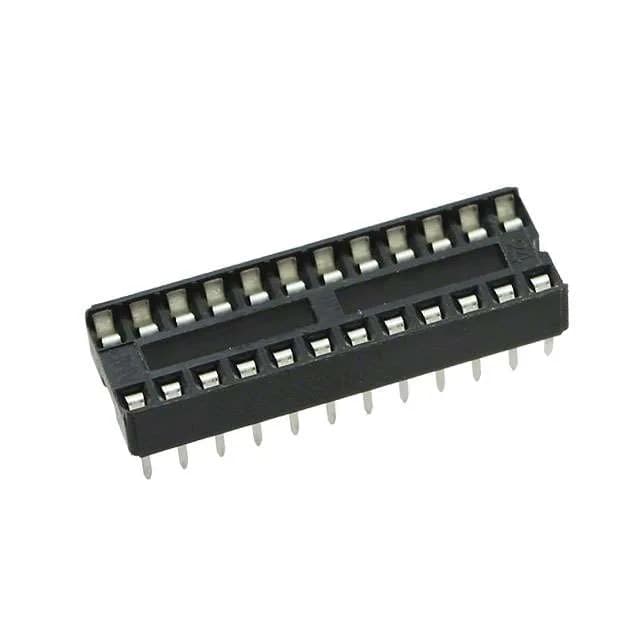

TE Connectivity AMP Connectors DIP header, order code 1-390261-8, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated mating and post contacts, through-hole, solder termination, open frame.
TE 1-390261-8 24-Pin DIP Header, 2.54mm Pitch, Obsolete
MPN1-390261-8
Obsolete
TE Connectivity AMP Connectors DIP header, order code 1-390261-8, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated mating and post contacts, through-hole, solder termination, open frame.
$0.4100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 105°C |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 24 (2 x 12) |
Product details
Frequently asked questions
Where can I buy 1-390261-8 and how do I get a price?
The 1-390261-8 is orderable through independent surplus channels.
What is the listed type and package for 1-390261-8?
The type is DIP with 0.3" (7.62mm) row spacing. The package is Tube.
