The 1-390261-9: Tin-plated mating contacts and tin-plated posts, both on phosphor bronze base material, with 60.0µin (1.52µm) finish thickness. Through-hole solder termination; open-frame construction.
TE 1-390261-9 DIP Header 28-Pos 0.100" Pitch Obsolete
MPN1-390261-9
Obsolete

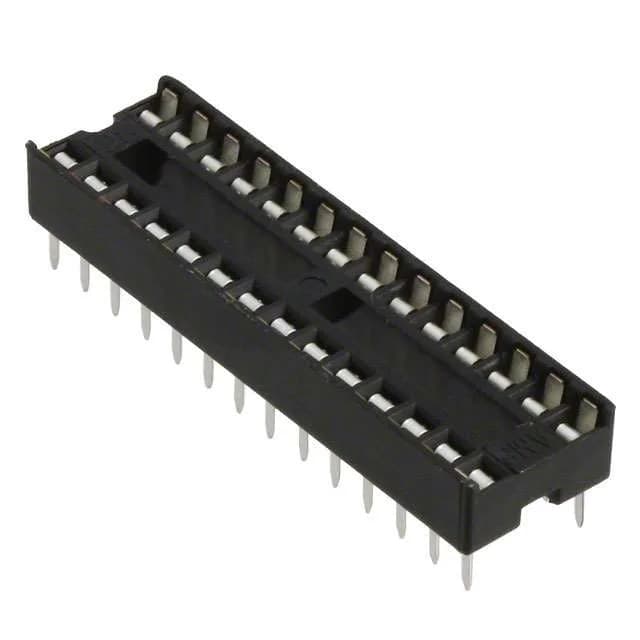

TE Connectivity AMP Connectors DIP header, order code 1-390261-9, 28 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, open frame.
$0.4600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Mounting | Through Hole |
| Operating temperature | -40°C~105°C |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
| Number of positions or pins | 28 (2 x 14) |
