24-pin DIP socket with 0.3" row spacing — the BOM-fit check

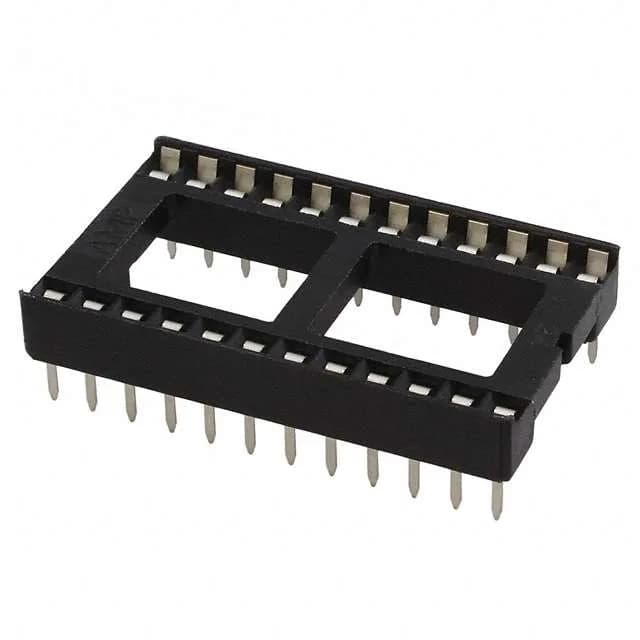

The 1-390262-1: The open-frame construction leaves the board visible under the socket for trace routing and inspection.
1-390262-1 DIP Socket 24-Pin 0.3" Row Spacing Obsolete
MPN1-390262-1
Obsolete
TE Connectivity 390262 series DIP socket, 24 positions (2 x 12), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, through-hole solder termination, open-frame construction, tin-plated phosphor bronze contacts, -40°C to 105°C operating range.
$1.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Mounting | Through Hole |
| Operating temperature | -40°C ~ 105°C |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Package | Box |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.118\" (3.00mm) |
| Number of positions or pins | 24 (2 x 12) |
Product details
Frequently asked questions
How can I order 1-390262-1 or check stock?
The 1-390262-1 is obsolete from TE Connectivity. We source it per RFQ — submit your target quantity and we confirm availability and current pricing from our supply network at quote time. No stock-holding claim; sourced to order.
Is 1-390262-1 obsolete?
Yes, the 1-390262-1 is listed as Obsolete. No direct replacement is published by TE Connectivity for this base product number 390262.
