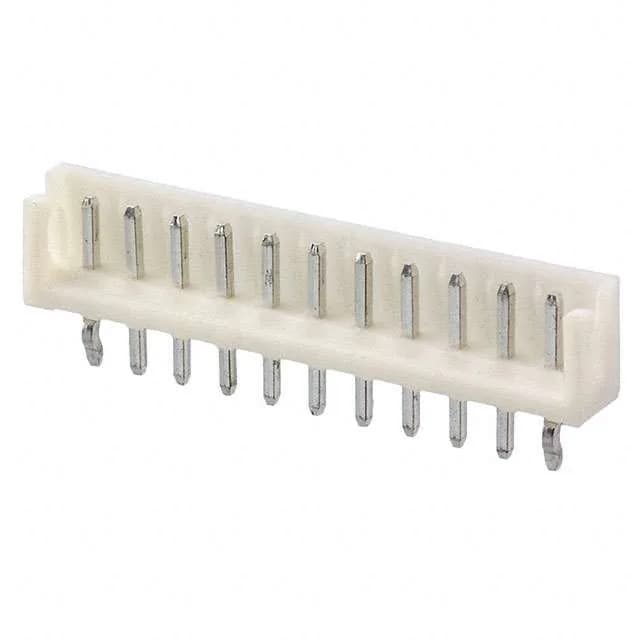

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, order code 1-440052-1, 11 positions, single row, 2.50 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, press-fit and solder termination, shrouded 3-wall.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.335\" (8.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.136\" (3.45mm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-440052-1 is the 11-circuit member of TE Connectivity's High Performance Interconnect (HPI) single-row shrouded header line, configured for board-to-cable/wire applications.
Three-wall shrouding and a friction lock keep the mating half aligned and seated — the lock holds against vibration without a separate latch mechanism.
The part ships in bulk packaging.
The connector style is Board to Cable/Wire, meaning it mates with a wire-mounted receptacle (not a second board).
