2.00 mm pitch, 10-position shrouded header for board-to-cable/wire

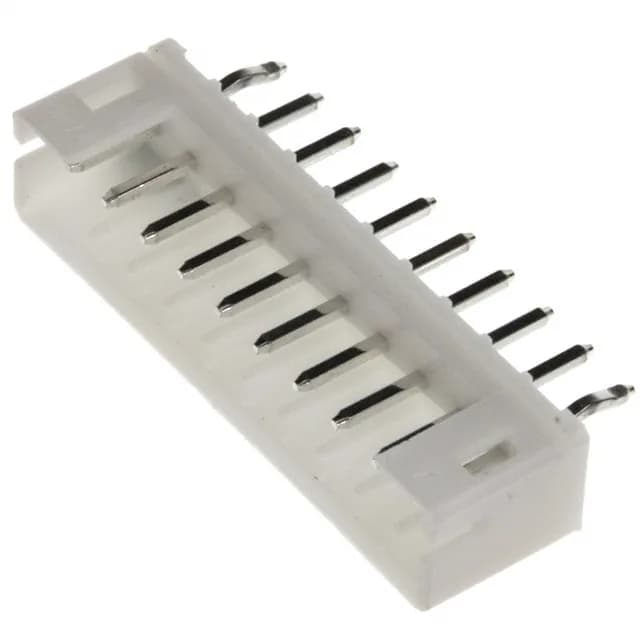

The 1-440054-0 is a 10-position, single-row header from the TE High Performance Interconnect (HPI) series, designed for board-to-cable/wire applications. The 4-wall shrouding protects the male pins from damage during handling and prevents mis-mating with the cable-side receptacle — a practical feature for harness assembly where connectors are mated and unmated repeatedly. Rated at 3 A per contact and 250 V, this header handles signal-level currents and low-voltage power in automotive, industrial, medical, and general-purpose equipment.
Press-fit and solder termination for flexible board assembly
The termination supports both press-fit and solder processes. Press-fit allows a solderless backplane assembly — useful when rework or field replacement is a concern — while the through-hole solder option fits standard wave-solder lines. The contact length after mounting is 0.134" (3.40 mm) for the post and 0.132" (3.35 mm) for the mating pin, giving a total contact length of 0.335" (8.51 mm). The operating temperature range is -25°C to 85°C.
