TE Connectivity AMP Connectors 1-440054-2 — Pin Headers

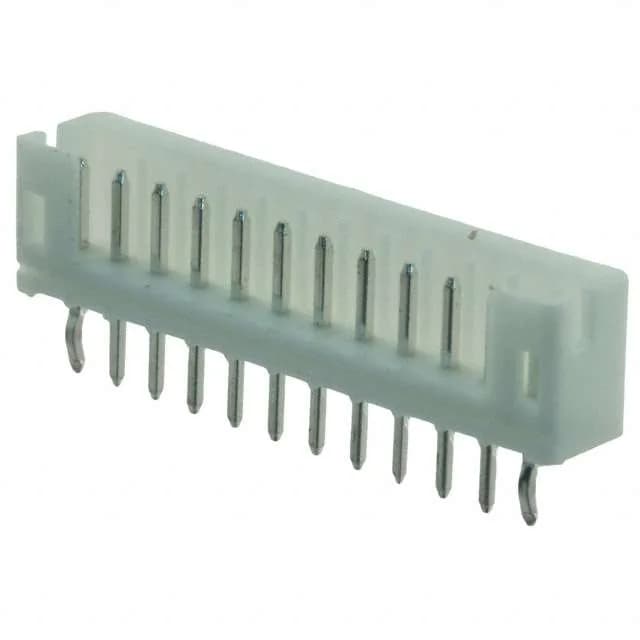

1-440054-2 TE Connectivity Header 12 Pos 2mm Shrouded

MPN1-440054-2
Active

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-440054-2, Board to Cable/Wire header, 12 positions, 1 row, 0.079" (2.00 mm) pitch, shrouded - 4 wall, through hole, press-fit/solder termination, tin contacts, 3 A, 250 V, -25°C ~ 85°C, UL94 V-0.

$0.7600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-440054-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-440054-2 key specifications
ParameterValue
SeriesHigh Performance Interconnect (HPI)
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.238\" (6.05mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Material flammability ratingUL94 V-0

All specifications

1-440054-2 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions12
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.335\" (8.51mm)
Contact finish - matingTin
Contact length - mating0.132\" (3.35mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

What this 12-position 2 mm header does in the assembly

The 1-440054-2: This is a single-row, 12-position header from TE's High Performance Interconnect (HPI) series, designed to connect a board to a cable or wire assembly.

Termination options: press-fit or solder

The termination is listed as both press-fit and solder. Press-fit allows a solderless backplane assembly where the compliant pin cold-welds into the plated through-hole — eliminates reflow defects and simplifies rework. Solder gives a standard through-hole connection for conventional wave or hand-solder processes.

Frequently asked questions

What is the pitch of TE 1-440054-2 header?

The mating pitch is 0.079" (2.00 mm). This matches the standard 2.00 mm pitch receptacle from the HPI series.

Is 1-440054-2 suitable for automotive applications?

Yes, the HPI series is listed for automotive use, along with general purpose, industrial, and medical. The -25°C to 85°C temperature range covers cabin and interior locations, not under-hood or engine-bay extremes.
