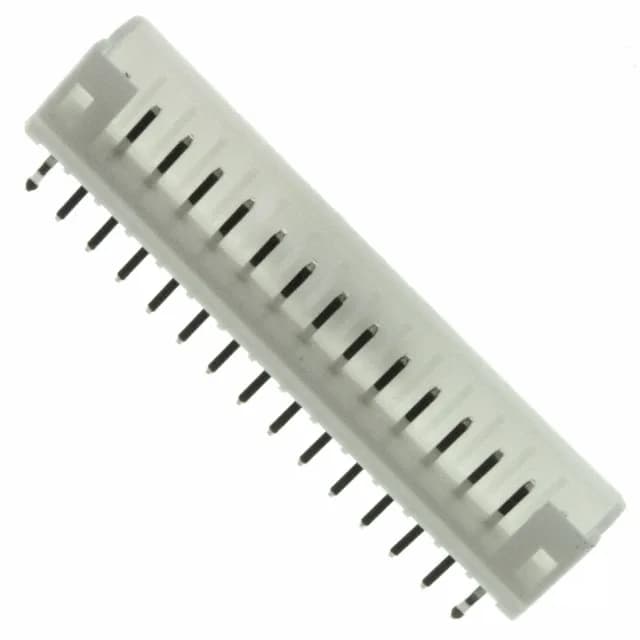

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, order code 1-440054-4, 14 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, press-fit and solder termination.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.335\" (8.51mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.132\" (3.35mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-440054-4 is the 14-circuit member of TE's High Performance Interconnect (HPI) shrouded header line, configured for board-to-cable/wire duty. Tin-plated mating contacts rated 3 A at 250 V, through-hole mounting with press-fit and solder termination.
Sourced per RFQ against BOM quantities.
The 1-440054-4 is available to order.
The 1-440054-4 is the 14-circuit, single-row, 2.00 mm pitch member of the HPI series; other position counts in the same series share the pitch and footprint.
