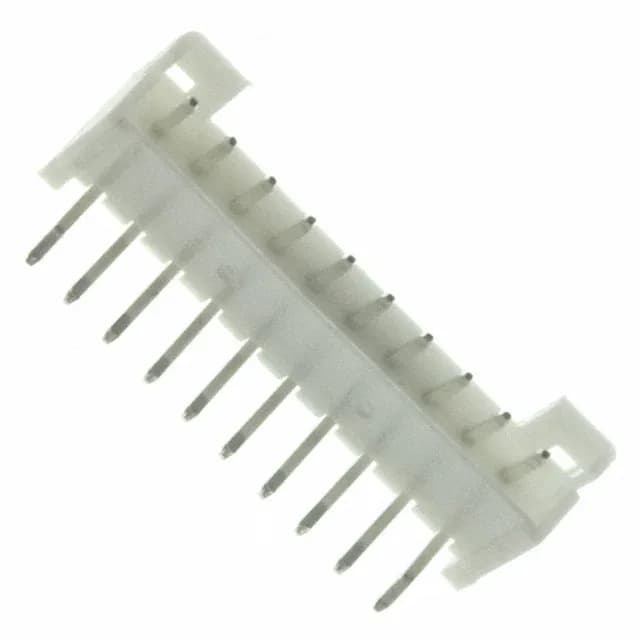

2.00 mm pitch, 10-position right-angle header for wire-to-board
Shrouded 3-wall housing and press-fit termination
The shrouded 3-wall design (insulation height 0.195" / 4.95 mm) protects the square male pins during mating and guides the receptacle into correct alignment, reducing pin damage in blind-mate or high-vibration assemblies. Termination supports both press-fit and solder processes — press-fit avoids solder voids in high-vibration environments, while solder allows rework during prototyping or field repair.
Current rating is 3 A per contact at 250 V, with an operating temperature range of -25°C to 85°C — suitable for general-purpose industrial, medical, and automotive interior applications where ambient heat stays below 85°C.
