The 1-440055-6: Right-angle through-hole mounting with a press-fit or solder termination option — the 0.134" (3.40 mm) post length sets the board clearance for the mating receptacle. The 0.195" (4.95 mm) insulation height leaves room for the latch on the receptacle side.

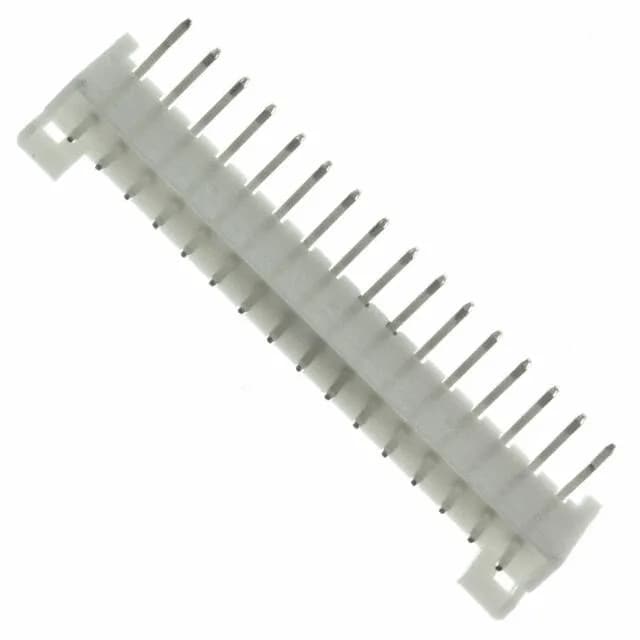

1-440055-6 TE Connectivity Header 16 Pos 2mm R/A
MPN1-440055-6
Active
TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-440055-6, board-to-cable/wire header, 16 positions, 2.00 mm pitch, single-row, right-angle through-hole, shrouded 3-wall, tin-plated contacts, 3 A, 250 V, UL94 V-0.
$1.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.195\" (4.95mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
Product details
Frequently asked questions
What connector mates with 1-440055-6?
This is a shrouded header designed for a wire-to-board receptacle in the same HPI series. The mating half is a 16-position, 2.00 mm pitch housing that accepts the corresponding crimp terminals. Confirm the receptacle part number against the BOM.
