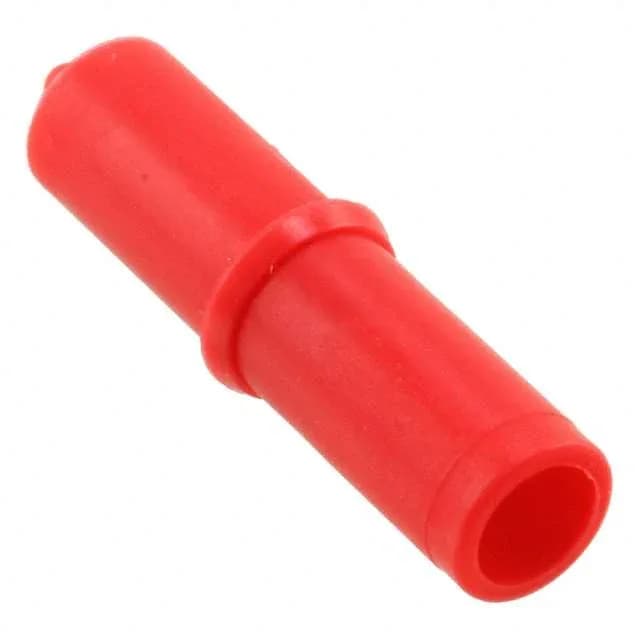

TE Connectivity AMP Connectors Commercial MATE-N-LOK, 1-position plug housing, red, friction lock, free-hanging (in-line), crimp termination, -55°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Friction Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Red |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 1 |
The 1-480349-2: Each housing carries one female socket contact (ordered separately), making it a building block for point-to-point or multi-wire harnesses where individual circuit isolation matters. The red color aids visual circuit identification in dense harnesses – a practical help when tracing wires without a meter.
It suits moderate-vibration environments like automotive interiors or industrial control cabinets.
The housing accepts a female socket crimp terminal. TE Connectivity offers several socket contacts for the Commercial MATE-N-LOK series – check the series product drawing for the specific terminal part number that matches your wire gauge.
No – the housing is supplied without contacts. You must order the matching female socket terminal separately.
Free hanging (in-line) – it is not designed for board mounting. The housing mates with a board-mounted header via the friction lock.
