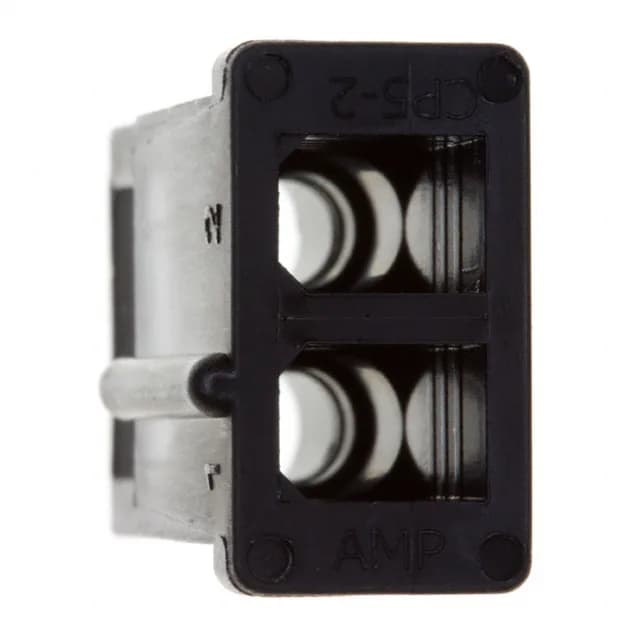

TE Connectivity Commercial MATE-N-LOK plug housing, 1-480393-1, 2 positions, 1 row, 5.08mm pitch, free-hanging in-line, female socket crimp contacts, detent lock, black nylon, bulk.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Detent Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
For a 2-position plug, that means two crimp contacts and the correct wire gauge per the terminal datasheet. The free-hanging mount means no board footprint to worry about; the harness builder crimps the contacts, inserts them into the housing until the detent locks them, and mates to the corresponding header or receptacle.
Availability is confirmed at quote time — submit an RFQ for current pricing and lead time.
The 1-480393-1 accepts female socket contacts terminated by crimp. Contacts are not included with the housing; select the matching Commercial MATE-N-LOK crimp terminal for the wire gauge in your harness.
