TE Connectivity AMP Connectors 1-480703-2 — Connector Housings

TE Universal MATE-N-LOK 1-480703-2

MPN1-480703-2
Active

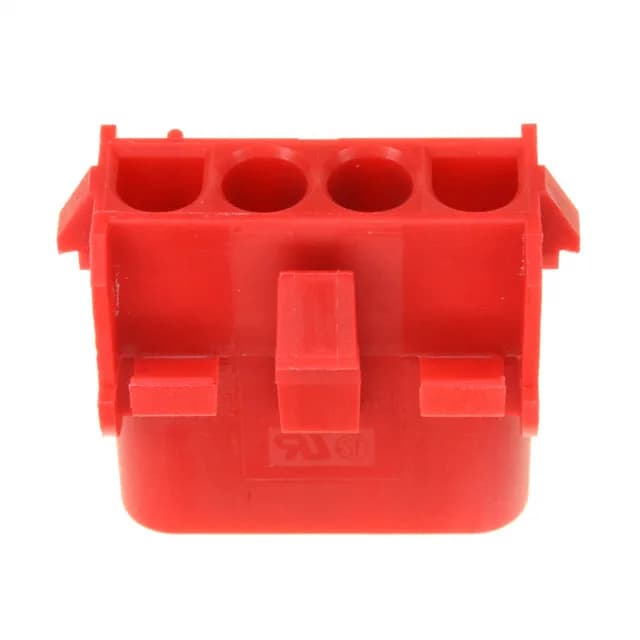

TE Connectivity Universal MATE-N-LOK 1-480703-2, 4-position single-row receptacle housing, red, panel mount snap-in, locking ramp fastening, crimp termination, -55°C to 105°C operating range.

$0.3600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-480703-2 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorRed
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

The 1-480703-2: It is the red colour variant, panel-mounted via snap-in retention, and uses a locking ramp for positive fastening.

No secondary lock or screw is needed; the ramp holds the pair mated through the temperature swings and mechanical shock typical of an engine bay or conveyor line. The snap-in panel mount simplifies chassis assembly: a rectangular cutout in the panel, push the housing in until the barbs click, and it's retained without hardware. For a 4-circuit power or signal harness, this keeps the BOM simple — housing, terminals, wire, no extra clips or brackets.

How It Sits Against the 5-Position White Sibling

The closest functional peer in the Universal MATE-N-LOK family is the 1379217-6 — a 5-position (3 + 2 power) receptacle housing in white, also with a locking ramp and female-socket contact type. The difference is the position count and the colour. The 1-480703-2 is a straight 4-position single-row housing; the 1379217-6 adds a mixed 3+2 layout for applications that need a separate power pair within the same connector shell. Both are panel-mount, both use the same locking ramp, and both accept crimp terminals.

Frequently asked questions

What contacts are used with 1-480703-2?

The 1-480703-2 housing accepts either male or female crimp contacts from the Universal MATE-N-LOK series, but the contacts are not included with this order code. You must order the matching terminals separately — TE part numbers for the crimp contacts are listed in the Universal MATE-N-LOK product family.
