TE Connectivity AMP Connectors 1-480703-9 — Connector Housings

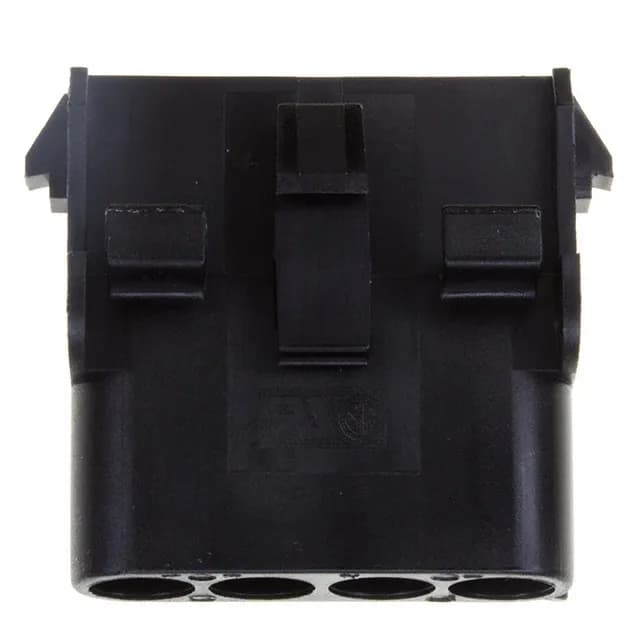

1-480703-9 Universal MATE-N-LOK Receptacle Housing, 4 Pos

MPN1-480703-9
Active

TE Connectivity Universal MATE-N-LOK receptacle housing, 1-480703-9, 4 positions, single row, panel mount snap-in, locking ramp, black nylon, crimp termination, contacts not included.

$0.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-480703-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-480703-9 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

Panel-Mount Receptacle Housing, 4-Position, Universal MATE-N-LOK

The 1-480703-9: It mounts to a panel via snap-in clips and secures the mating plug with a locking ramp — no tools needed for installation or unmating. The housing is moulded in black polyamide (nylon) and accepts either male or female crimp contacts, which are ordered separately.

The 4-position count matches a 4-circuit wire harness or a 4-way power/signal distribution point. The single-row layout keeps the housing narrow — useful when panel space is tight.

The crimp termination requires a separate crimp tool and the appropriate contact — the housing itself has no solder points or wire-entry holes. The panel snap-in feature holds the housing in place before the mating half is inserted, which simplifies assembly in a harness jig.

Frequently asked questions

Does 1-480703-9 include contacts?

No, contacts are not included with this housing. The 1-480703-9 is a receptacle housing only — you must order the crimp terminals separately (male or female, depending on your application).

What is the mating plug for 1-480703-9?

The mating plug is a Universal MATE-N-LOK plug housing from the same series, with the corresponding number of positions (4). The plug accepts male pin contacts and locks into this receptacle via the locking ramp.

Where can I buy 1-480703-9?

This part is sourced to order against your BOM quantity.
