What This Housing Is and What It Needs

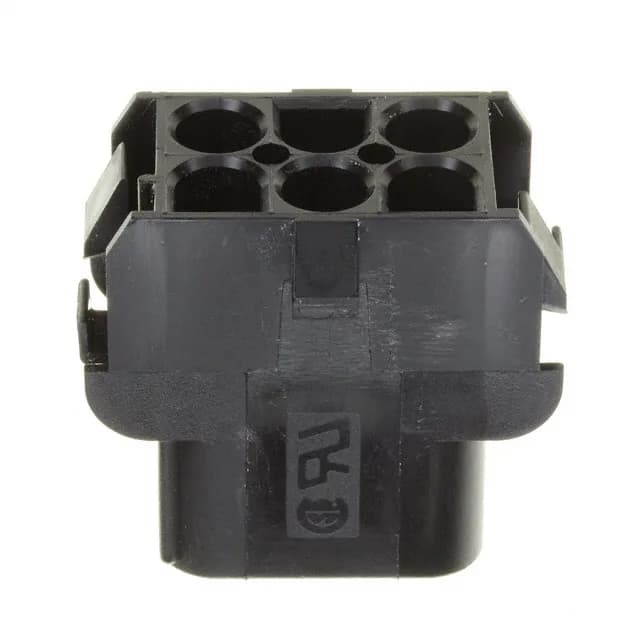

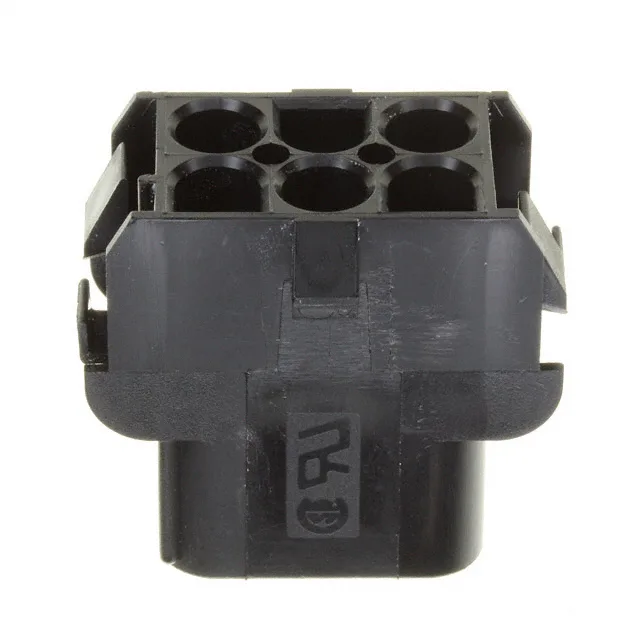

The TE Connectivity 1-480705-9 is a 6-position receptacle housing from the Universal MATE-N-LOK series, designed as a panel-mount, snap-in connector for wire-to-wire or wire-to-board power and signal harnesses. It accepts either male or female crimp contacts — the housing itself is unloaded, so you order the terminals separately. The locking ramp gives a positive audible latch that holds the mated pair together under vibration, common in industrial control cabinets, HVAC equipment, and appliance power distribution.
Mating and Panel Fit
Mates with the corresponding Universal MATE-N-LOK plug housing of the same circuit count — the locking ramp on the receptacle engages the matching ramp on the plug. Panel-mount snap-in clips into a rectangular cutout without hardware; the nylon housing holds position against cable strain up to the terminal retention limit.
