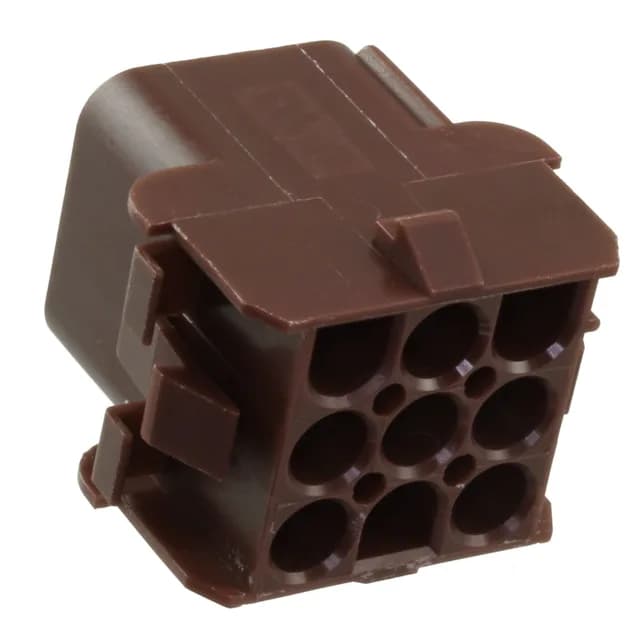

TE Connectivity Universal MATE-N-LOK receptacle housing, 1-480707-1, 9 positions, 3 rows, 0.250" (6.35mm) row spacing, panel mount snap-in, locking ramp, crimp termination, brown nylon, -55°C to 105°C, RoHS.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -55°C ~ 105°C |
| Color | Brown |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Package | Bulk |
| Row spacing | 0.250\" (6.35mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 9 |
It accepts male or female crimp contacts (sold separately) and uses a locking ramp for a vibration-resistant mate.
This housing snaps into a panel cutout with 0.250" (6.35mm) row spacing across 3 rows. No contacts are included; order the appropriate crimp terminals (e.g., TE 60619-1 for 18-24 AWG) separately.
No, the 1-480707-1 is a housing only — contacts are not included. You must order the matching crimp terminals separately.
The mating half is a Universal MATE-N-LOK plug header (male pin housing) with the same 9-position, 3-row configuration and 0.250" row spacing.
Yes, the 1-480707-1 is RoHS compliant.
