TE Connectivity AMP Connectors 1-480707-9 — Connector Housings

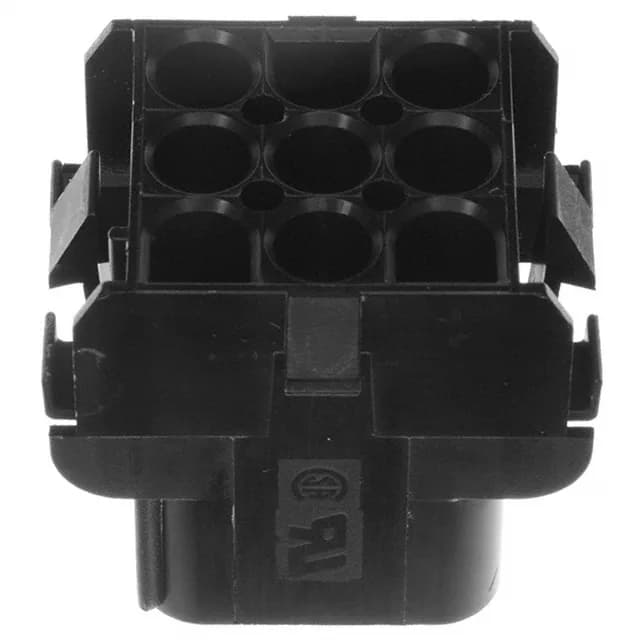

TE Universal MATE-N-LOK 1-480707-9, 9-Pos Receptacle Housing

MPN1-480707-9
Active

TE Connectivity Universal MATE-N-LOK receptacle housing, 1-480707-9, 9 positions, 3 rows, 0.250" (6.35mm) row spacing, panel mount snap-in, locking ramp, crimp termination, black nylon, -55°C to 105°C.

$0.3100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-480707-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-480707-9 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Row spacing0.250\" (6.35mm)
Rows3
Contact terminationCrimp
Positions9

Product details

9-Position, 3-Row Universal MATE-N-LOK Receptacle Housing

The TE Connectivity 1-480707-9 is a 9-position receptacle housing from the Universal MATE-N-LOK series, arranged in 3 rows with a 0.250" (6.35mm) row spacing.

Panel Cutout and Mounting

The exact cutout dimensions are defined in the TE product drawing for the Universal MATE-N-LOK series; the 3-row body requires a rectangular opening that accommodates the 0.250" row spacing and the locking ramp wings. For a 9-position, 3-row layout, the cutout length is driven by the contact cavity pitch along the housing length, typically around 1.200" for this position count.

Both male and female crimp terminals from the Universal MATE-N-LOK family are accepted (contacts not included), covering wire sizes typical of the series. The crimp termination allows field-serviceable wire attachment without soldering.

Frequently asked questions

What contacts are compatible with 1-480707-9?

The 1-480707-9 accepts Universal MATE-N-LOK series crimp terminals in both male and female contact types. Contacts are not included with the housing and must be ordered separately based on wire gauge and application.

What is the mating connector for 1-480707-9?

The mating half is a Universal MATE-N-LOK plug housing with 9 positions in 3 rows, featuring the corresponding locking ramp latch. The receptacle's locking ramp engages with the plug to secure the mated pair.

Is 1-480707-9 RoHS compliant?

Yes, the 1-480707-9 is listed as RoHS compliant by TE Connectivity.
