TE Connectivity AMP Connectors 1-480708-2 — Connector Housings

TE Universal MATE-N-LOK 1-480708-2, 12 Pos Plug Housing

MPN1-480708-2
Active

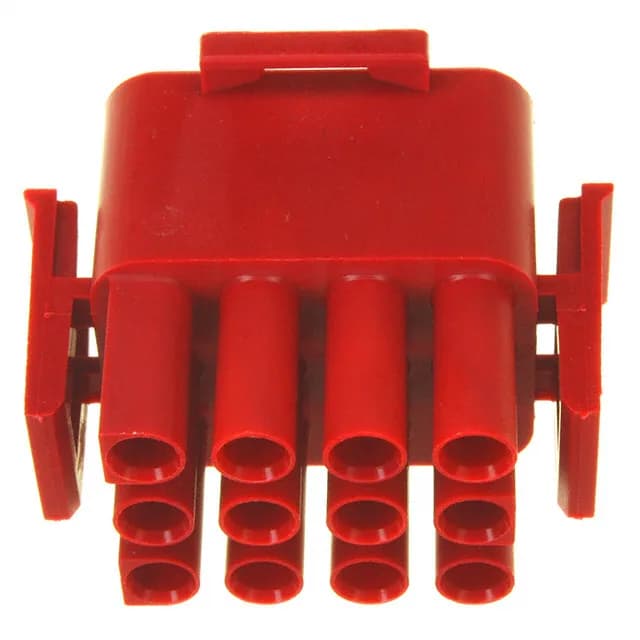

TE Connectivity Universal MATE-N-LOK 1-480708-2, 12-position 3-row plug housing, 0.250" (6.35mm) row spacing, red polyamide, latch lock, free-hanging crimp termination, contacts not included.

$0.5500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesUniversal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-480708-2 specifications
ParameterValue
SeriesUniversal MATE-N-LOK
TypeMale or Female
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorRed
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
PackageBulk
Row spacing0.250\" (6.35mm)
Rows3
Contact terminationCrimp
Positions12

Product details

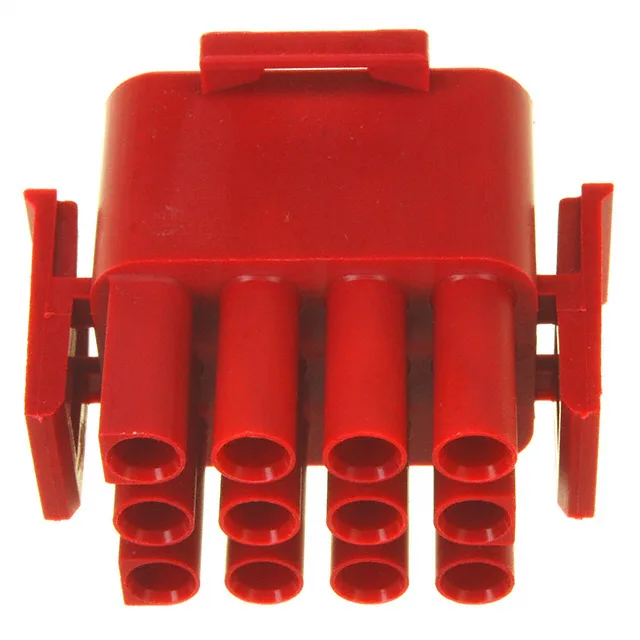

The red polyamide shell carries three rows of cavities at a 0.250" (6.35 mm) row spacing, accepting either male or female crimp contacts — the same housing works for both sides of the mate.

Compared to the single-row 6-position 1-1376477-6 from the same Universal MATE-N-LOK family, the 1-480708-2 doubles the circuit count and adds two more rows — 12 positions across 3 rows vs 6 positions in a single row. The 1-1376477-6 uses a 0.098" (2.50 mm) pitch, while the 1-480708-2 spaces its rows at 0.250" (6.35 mm), giving more room for larger wire gauges or higher current terminals. Both accept male or female contacts and share the latch lock fastening, but the 12-position housing is the one to reach for when the harness needs more than 6 circuits in a single connector.

For a storeroom spare, this means the plug housing is still in regular production and can be ordered against a BOM line without worrying about a last-time buy.

The Universal MATE-N-LOK series accepts a range of pin and socket contacts (sold separately) that match the 0.250" row spacing and cavity geometry. For a harness build, stock both the plug housing and its mating receptacle housing as a pair, plus the correct terminals and tooling, to avoid an orphan half on the shelf.

Frequently asked questions

Does 1-480708-2 include contacts?

No, the 1-480708-2 is a plug housing only — contacts are not included and must be ordered separately as crimp terminals from the Universal MATE-N-LOK series.

What contacts should I use with 1-480708-2?

The 1-480708-2 accepts either male or female crimp contacts from the Universal MATE-N-LOK family that fit the 0.250" (6.35 mm) row spacing cavity. Select the pin or socket terminal that matches your wire gauge and current requirement.
