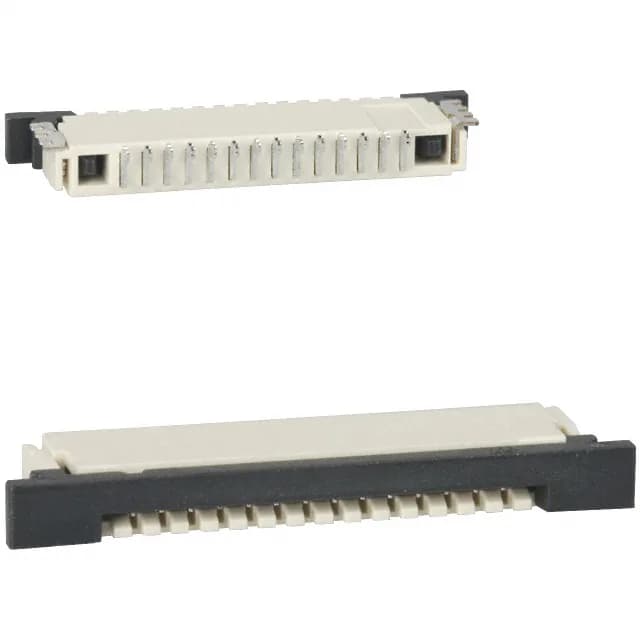

TE Connectivity AMP Connectors FPC connector, order code 1-487952-4, 14 positions, 1.00 mm pitch, 1 A, 200 V, tin-lead contact finish, bottom contact type, surface-mount right-angle, solder termination, ZIF slide lock.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Height above board | 0.101\" (2.56mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Bulk |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin-Lead |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 14 |
| Contact finish thickness | 150.0µin (3.81µm) |
The 1-487952-4 is a 14-position FPC connector from TE Connectivity AMP Connectors, using a ZIF slide lock actuator and bottom contact arrangement. Rated 1 A per contact at 200 V, with a 1.00 mm pitch and tin-lead contact finish. Accepts 0.30 mm FPC thickness. Surface-mount right-angle mounting with solder retention features holds the connector during reflow.
TE Connectivity AMP Connectors supplies the 1-487952-4. Volume pricing is quoted per RFQ against the BOM quantity.
