TE Connectivity AMP Connectors 1-499141-0 — Pin Headers, Sockets & Housings

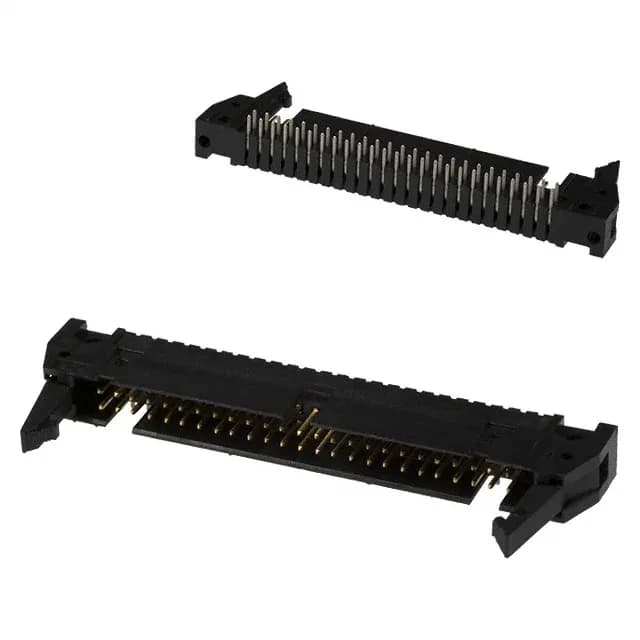

TE AMP-Latch 1-499141-0 Header, 50 Pos, 2.54mm, Right Angle

MPN1-499141-0
Active

TE Connectivity AMP-Latch header, order code 1-499141-0, 50 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, 250 VAC, gold or gold-palladium mating contacts, through-hole right-angle, solder termination.

$7.9981Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-499141-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-499141-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

1-499141-0 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-wire header with shrouded latch

The 1-499141-0 is the 50-position member of TE's AMP-Latch header line, a shrouded board-to-wire connector with latch lock/eject hooks for secure mating. Rated 1 A per contact at 250 VAC, the header carries gold or gold-palladium mating contacts and operates from -65°C to 105°C with a UL94 V-0 housing.

Shrouding, keying, and mounting features

A 4-wall shroud with a keying slot and mounting flange protects the 0.240" (6.10 mm) mating pins and prevents mis-mating with non-keyed receptacles. The through-hole right-angle orientation places the 0.110" (2.79 mm) solder posts parallel to the board edge, suiting the header for cable exits along the PCB perimeter.

Frequently asked questions

What is the mating connector for 1-499141-0?

The header mates with a standard AMP-Latch receptacle (50-position, 0.100" pitch) using the latch lock/eject hooks for retention. Confirm the receptacle part number against the board-to-wire style.

What compliance documentation is available for 1-499141-0?

The header carries a UL94 V-0 flammability rating on the insulation material. RoHS and REACH compliance documentation is provided by TE Connectivity for this part number.
