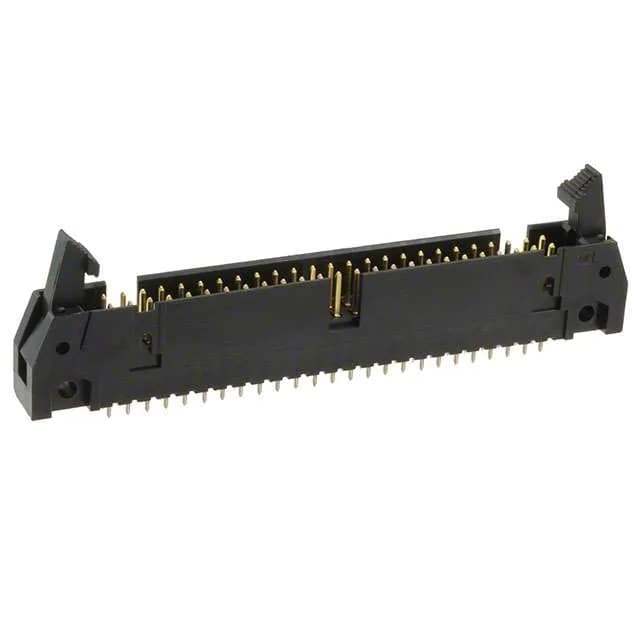

TE Connectivity AMP-Latch header, order code 1-499160-0, 50 positions, dual row, 0.100" (2.54mm) pitch, 1 A, gold or gold-palladium mating contacts, through-hole, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-499160-0: Short latch lock/eject hooks on both ends secure the mating half; a keying slot and mounting flange prevent mis-mating and allow panel-mounting the header before the cable assembly is plugged in.
The 1-499160-0 is a Board to Cable/Wire style header from the AMP-Latch series, designed for IDC ribbon-cable termination.
