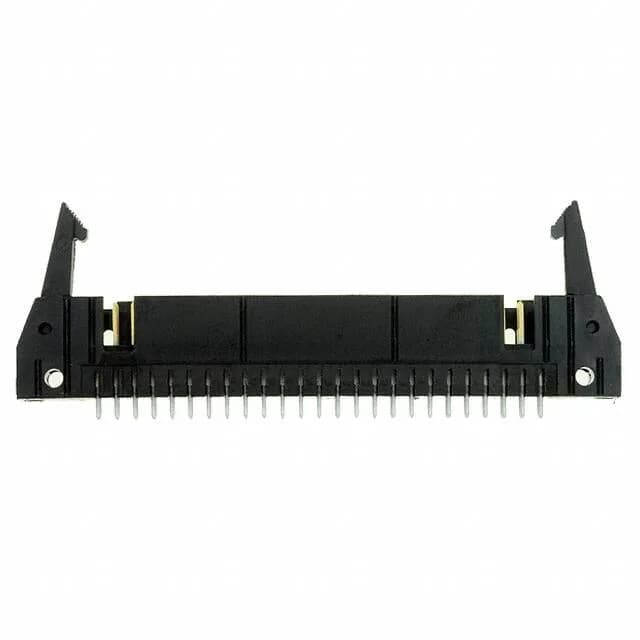

TE Connectivity AMP-Latch header, order code 1-499206-0, 50 positions, dual row, 0.100" (2.54mm) pitch, 1 A, 250 VAC, gold or gold-palladium mating contacts, through-hole, solder termination, shrouded 4-wall, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-499206-0: Long eject hooks on the latch lock give the assembler a positive lever to unmate the connector without prying at the housing body, which matters when the header sits in a dense board layout with limited finger clearance.
RoHS and REACH compliance documentation is available from the manufacturer for this active part number.
The 1-499206-0 mates with the corresponding AMP-Latch IDC receptacle (50-position, dual-row, 0.100" pitch). The keying slot and mounting flange on the header ensure the receptacle seats correctly before the latch hooks engage.
