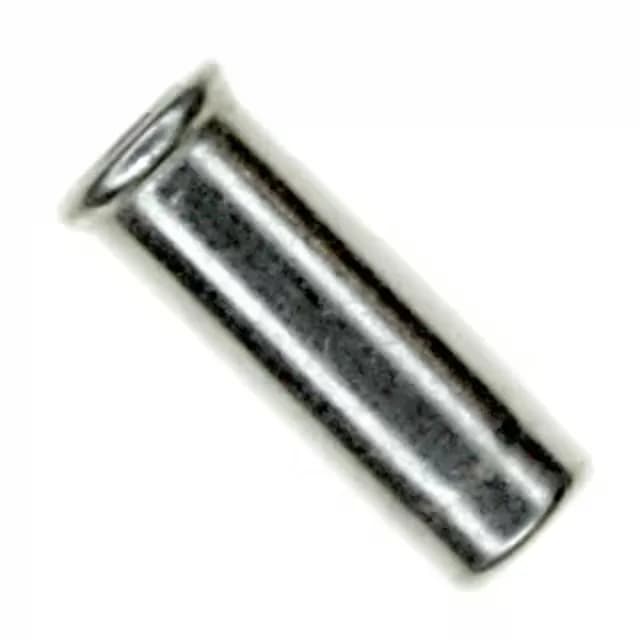

TE Connectivity AMP Connectors Series 5 pin socket, order code 1-50871-9, gold-plated beryllium copper contact, accepts 0.056"~0.065" (1.42mm~1.65mm) pin diameter, solder termination, open bottom, bulk package.
| Parameter | Value |
|---|---|
| Series | 5 |
| Tail type | No Tail |
| Mounting hole diameter | 0.101\" ~ 0.103\" (2.57mm ~ 2.62mm) |
| Operating temperature | -65°C~125°C |
| Socket depth | 0.275\" (6.99mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Features | Open Bottom |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.118\" (3.00mm) |
| Length - overall | 0.288\" (7.32mm) |
| Accepts pin diameter | 0.056\" ~ 0.065\" (1.42mm ~ 1.65mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-50871-9 is a single-pin socket from TE Connectivity AMP Connectors Series 5, accepting pin diameters from 0.056" to 0.065" (1.42mm to 1.65mm).
The 1-50871-9 is listed as Obsolete by TE Connectivity AMP Connectors.
