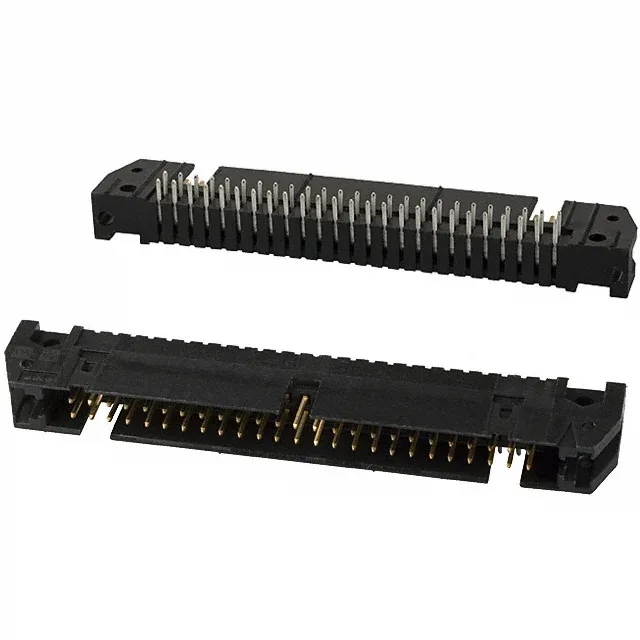

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, Male Pin, Solder, Through Hole Right Angle, 50 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, 1A per Contact, 250VAC, UL94 V-0, Black, Bulk
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-5102160-0: The fully shrouded 4-wall housing with keying slot and mounting flange prevents mis-mating with non-keyed receptacles and adds mechanical retention under cable strain or vibration.
The mating contact finish is 30.0 µin gold or gold-palladium, paired with a 100.0 µin tin post finish.
This header mates with a 50-position, 0.100" pitch, 2-row AMP-Latch IDC receptacle or similar cable-mount socket. The keying slot and 4-wall shroud require a matching keyed receptacle — verify the mating half part number against the AMP-Latch receptacle series.
