TE Connectivity AMP Connectors 1-5103308-3 — Pin Headers

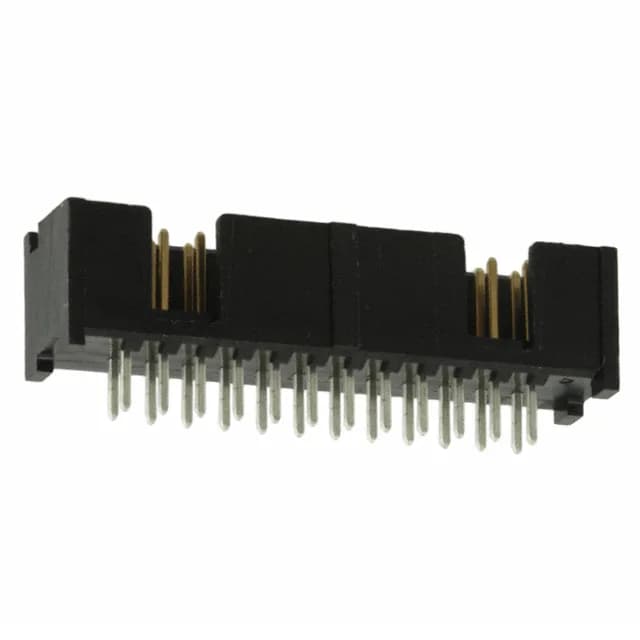

1-5103308-3 TE Connectivity AMP-Latch Header 24 Pos 2.54mm

MPN1-5103308-3
Active

TE Connectivity AMP-Latch series, 1-5103308-3, shrouded header, 24 positions, 2.54 mm pitch, dual row, through hole, male pin, 1 A per contact, UL94 V-0, black insulation, tube package.

$3.0200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5103308-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5103308-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.388\" (9.86mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-5103308-3 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

24-position dual-row header for AMP-Latch ribbon cable

1-5103308-3 is a 24-position, dual-row, shrouded header from the AMP-Latch series, designed for board-to-cable/wire interconnects using IDC ribbon cable. The 4-wall shroud protects the square male pins during handling and mating, and the keying slot prevents reverse insertion — a common cause of field rework on ribbon cable assemblies.

Signal-level current, gold mating surface

Rated 1 A per contact, this header is a signal interconnect, not a power bus.

Frequently asked questions

What connector mates with 1-5103308-3?

This header mates with a 24-position, 2.54 mm pitch IDC socket from the AMP-Latch series — the standard ribbon cable receptacle. The 4-wall shroud and keying slot ensure correct orientation.
