TE Connectivity AMP Connectors 1-5103311-0 — Pin Headers

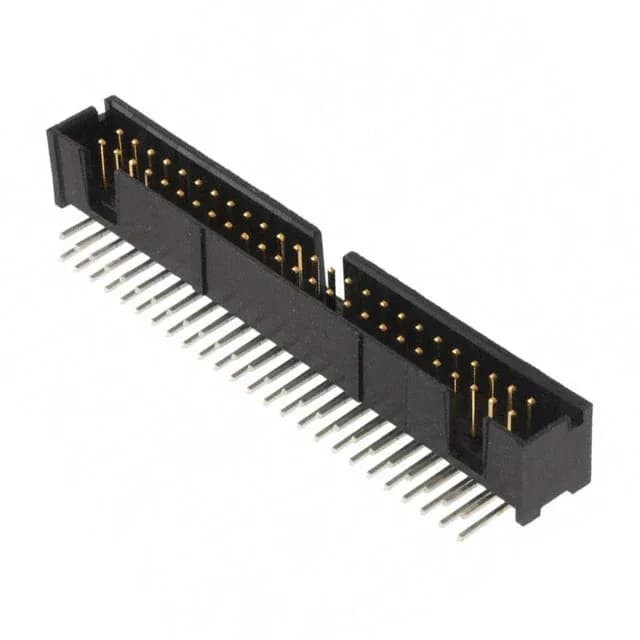

1-5103311-0 TE Connectivity AMP-Latch Header 50 Position

MPN1-5103311-0
Active

TE Connectivity AMP-Latch series, Board to Cable/Wire header, 50 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 4 wall, right-angle through-hole solder termination, male pin contacts with gold or gold-palladium mating finish, black UL94 V-0 insulator, keying slot, tube package.

$7.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-5103311-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-5103311-0 additional specifications
ParameterValue
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle 50-position header for AMP-Latch ribbon cable

The 0.100" (2.54mm) pitch and 0.100" row spacing match the standard ribbon cable footprint.

Contact plating and termination details

Mating contacts are finished with gold or gold-palladium at 30.0µin thickness, providing corrosion resistance for repeated mating cycles. Contact length on the mating side is 0.240" (6.10mm); the post length is 0.135" (3.43mm) — both standard for AMP-Latch through-hole headers.

Packaged in a tube (standard for AMP-Latch through-hole headers).

Frequently asked questions

Is 1-5103311-0 RoHS compliant?

Yes, 1-5103311-0 is ROHS3 compliant.

What is the mating connector for 1-5103311-0?

This header mates with AMP-Latch IDC socket connectors (e.g., TE 1-746285-0 series) that accept 0.100" pitch ribbon cable. The keying slot in the header aligns with the matching key in the socket housing.

Does 1-5103311-0 have a keying slot?

Yes, the header includes a keying slot feature to prevent incorrect mating with non-keyed socket housings.
