TE Connectivity AMP Connectors 1-5111008-0 — Pin Headers, Sockets & Housings

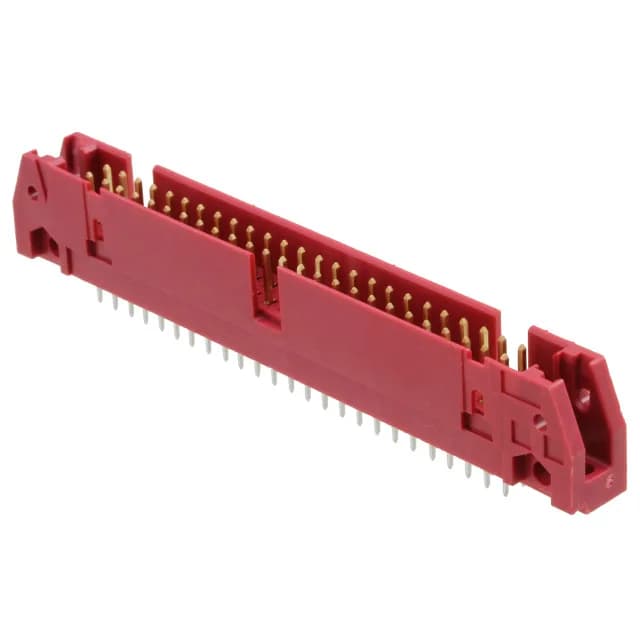

1-5111008-0 TE AMP-Latch Header, 50-Pos, 0.100" Pitch, Gold

MPN1-5111008-0
Active

TE Connectivity AMP-Latch shrouded header, 50 positions, 0.100" (2.54 mm) pitch, male pin, through-hole solder, 30 µinch gold mating contacts, 1 A per contact, UL94 V-0, active production.

$11.0720Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5111008-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-5111008-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Insulation colorRed
Insulation height0.549\" (13.94mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

1-5111008-0 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1-5111008-0: The 50 circuits fill a full 2x25 layout, so the mating receptacle must also be 50-position, dual-row, 0.100" pitch.

30 µinch Gold Mating Surface — Mating Cycle Life

The mating contact finish is 30.0 µinch (0.76 µm) gold over nickel — a plating grade that supports 500+ mating cycles in typical signal applications.

Keying Slot and 4-Wall Shrouding — Mis-Mate Protection

The header includes a keying slot and a full 4-wall shroud. The keying slot prevents inserting a mismatched receptacle — critical when multiple similar headers share a board.

The connector is RoHS-compliant per TE's standard declaration.

Frequently asked questions

What is the closest pin-compatible alternative to 1-5111008-0?

The 1-5111008-0 is a standard AMP-Latch header; any alternative would need to match the 50-position, 0.100" pitch, dual-row, shrouded footprint with 30 µinch gold mating contacts.
