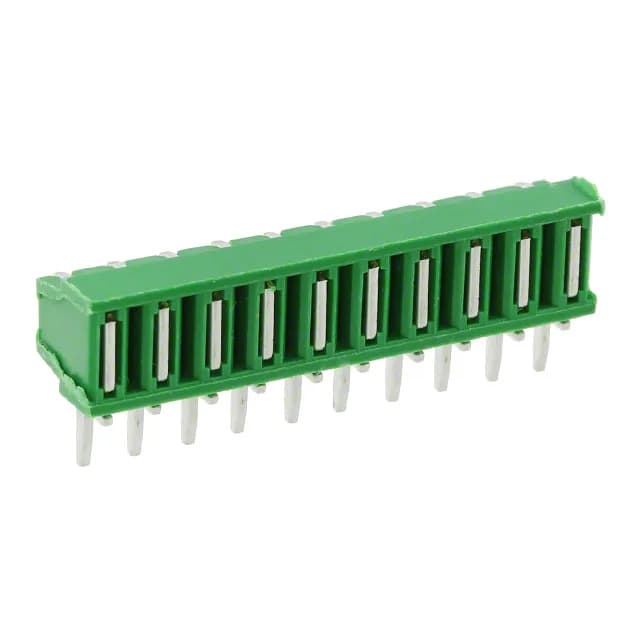

TE Connectivity AMP Mini-Match, 10-position single-row receptacle, 0.098" (2.50mm) pitch, through-hole right-angle solder termination, tin-plated forked contacts, friction lock, green PBT housing, UL94 V-0, -40°C to 85°C.
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 1-5164711-0: This is a 10-position single-row receptacle from TE's Mini-Match series, designed to mate with 0.098" (2.50mm) pitch pin headers. The forked contact style and tin-on-tin plating (mating and post) suit moderate-cycle applications.
Rated -40°C to 85°C, this receptacle covers most indoor and outdoor telecom, industrial control, and consumer electronics enclosures.
This is a 10-position single-row receptacle with all positions loaded. The pinout follows the standard 1-to-1 mapping to the mating header — position 1 is typically marked on the housing. Refer to the TE Mini-Match product drawing for the exact keying and polarity.
Yes, the mating pitch is 0.098" (2.50mm). The friction lock requires a header with a matching ramp or detent.
Yes, the fastening type is friction lock. It provides positive retention against light vibration and prevents accidental unmating, but it is not a secondary latch — the lock engages on the header's ramp during mating.
