Board-to-board receptacle with friction lock
The 1-5164711-1 is the 11-position member of TE's Mini-Match board-to-board receptacle line, single-row, with a friction lock for retention against vibration.

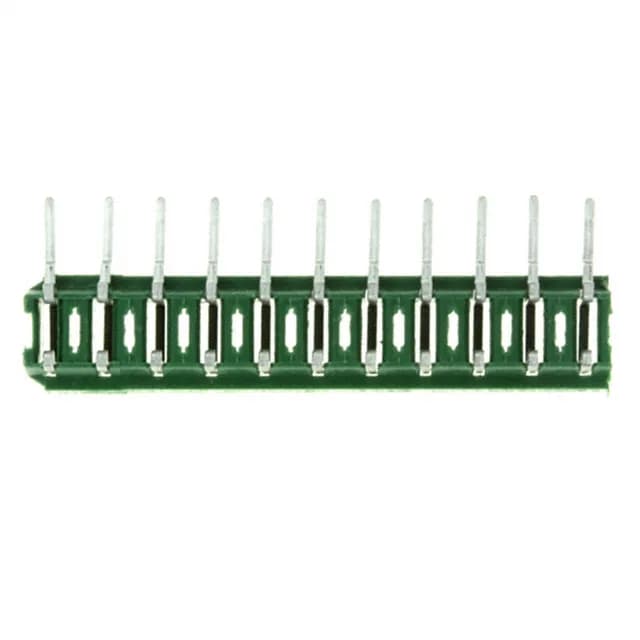

TE 1-5164711-1 Mini-Match Receptacle, 11 Pos, 2.50mm
MPN1-5164711-1
Active
TE Connectivity AMP Mini-Match receptacle, order code 1-5164711-1, 11 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination, friction lock.
$2.6483Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Match |
| Type | Forked |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.240\" (6.10mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What compliance documentation is available for the 1-5164711-1?
The 1-5164711-1 uses a UL94 V-0 rated PBT housing material. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
