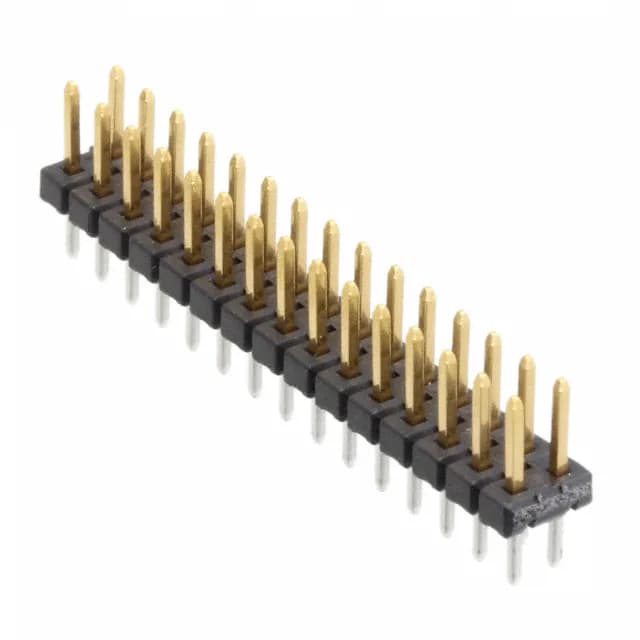

TE Connectivity AMP Connectors AMPMODU header, order code 1-5176264-4, 30 positions, dual row, 2.00 mm pitch, 200 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
The 1-5176264-4: Dual-row 2.00 mm pitch, 200 VAC rating, gold mating contacts at 8.00 µin thickness, through-hole solder termination.
The 0.102 inch (2.60 mm) solder tail length suits standard through-hole boards. Gold mating contacts (8.00 µin) tolerate repeated mating cycles better than tin, while the tin-plated posts keep solder joint cost in line for the through-hole process.
TE Connectivity AMP Connectors manufactures the 1-5176264-4. Quoted to order against the BOM quantity; availability confirmed at RFQ.
